Carburetor (New Marvel Schebler)
Carburetor (New Marvel Schebler)

Alternative Views:
Carburetor (New Marvel Schebler)
Our Price: $379.99
Special Instructions: 261


Product Code: MHS025
Qty:

Description

  • Massey Harris - Fits: Pony; Replaces: 850312M2
    Carb Mfg #'s - TSV16, TSV24

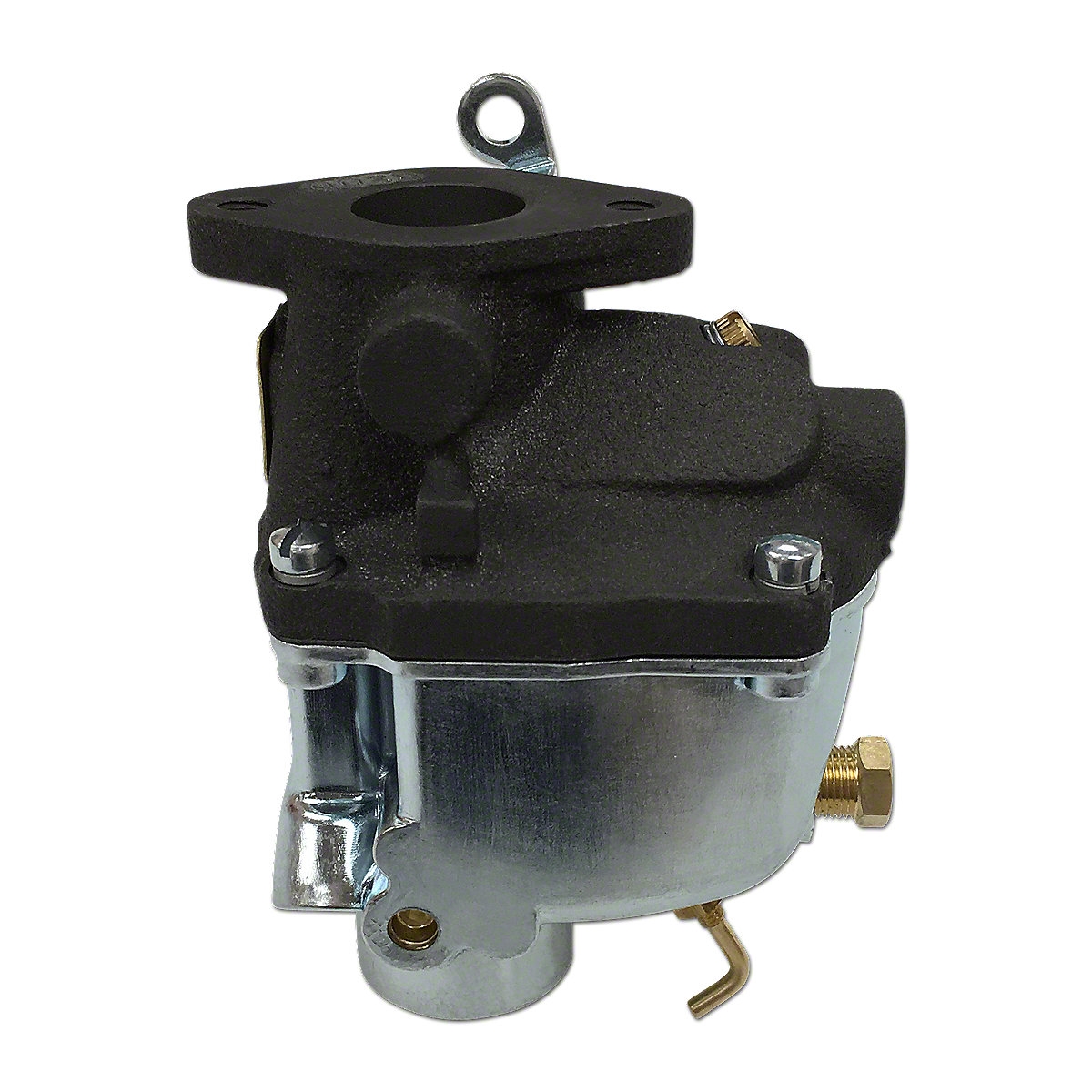

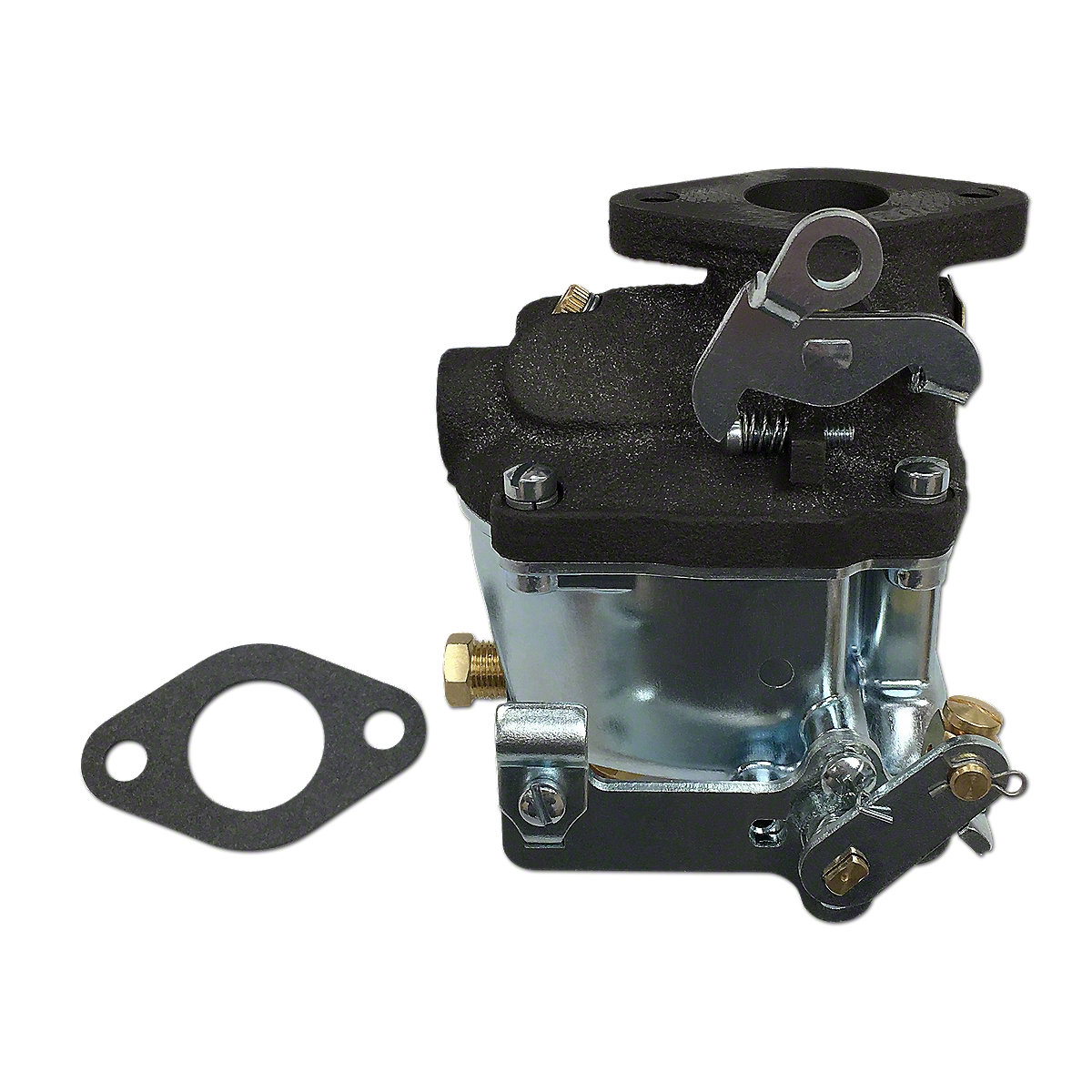

    Replace your Masey Harris Pony carburetor with our new Marvel Schebler replacement and make your tractor run like new! Our carburetor is made exactly like the original so all the original parts interchange. This new carburetor will fit like a glove to replace Marvel Schebler TSV16 and TSV24.
    • New, not rebuilt
    • This carburetor is identical to the original
    • It does not say "Marvel Schebler" but it has the TSV24 brass tag
    • The mounting studs measure 1-13/16" center to center
    • The throttle body throat measures 13/16" in diameter
    • The choke air horn (air inlet) measures 1-1/4" OD.
    • The fuel inlet measures 1/8" NPT
    • The carburetor mounting gasket is included
    Carburetors are limited to replacement only, no refunds, No replacement will be given if rust, dirt, etc. is found in the carburetor or if it has been taken apart.

    • New, not rebuilt
    • This carburetor is identical to the original
    • It does not say "Marvel Schebler" but it has the TSV24 brass tag
    • The mounting studs measure 1-13/16" center to center
    • The throttle body throat measures 13/16" in diameter
    • The choke air horn (air inlet) measures 1-1/4" OD.
    • The fuel inlet measures 1/8" NPT
    • The carburetor mounting gasket is included
