Premium Carburetor Repair Kit
Premium Carburetor Repair Kit

Premium Carburetor Repair Kit
Our Price: $114.99
Special Instructions: 261


Product Code: JDS2677
Qty:

Description

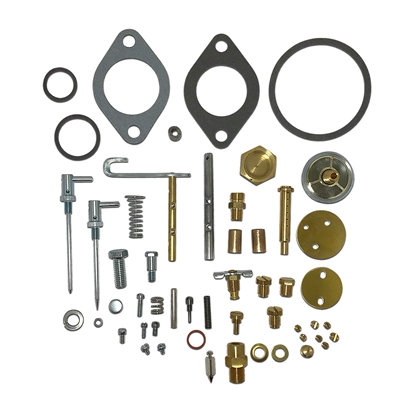

  • Fits John Deere - [ B, BN, BNH, BW, BWH, BWH40 (Styled, with DLTX34 carburetor) ]; Replaces: (1) Carb to manifold gasket: 321R, (1) Lower throttle bushing: 60-350, (1) Upper throttle bushing: 60-451, (1) Load needle: AR10018R, (1) Idle needle: AR10020R, (1) Strainer assembly: AR10021R, (1) Choke shaft & lever: AR10043R, (1) Drain petcock: AR10075R, (1) Float valve & seat: AR10077R, (1) Air cleaner to carb gasket: D1034R, (1) Bowl nut gasket: R10014R, (1) Strainer gasket: R10025R, (1) Bowl gasket: R10026R, (1) Screw: R10036R, (1) Float lever pin: R10049R, (2) Float bearing screws: R10050R, (1) Economizer plug: R10054R, (!) Throttle shaft: R10061R, (1) Bowl retaining nut: R10063R, (4) Brass plugs: R10067R, (1) Throttle stop spring: R10076R, (1) Nozzle spring: R10078R, (1) Throttle disc: R10080R, (1) Throttle packing: R10114R, (1) Nozzle: R10117R, (1) Throttle shaft plug: R10151R, (1) Float valve seat gasket: R10172R, (2) Lock washers: 12H64R, A765R, (2) Screws: 21H971R, 21H962R, (1) Brass plug: R10041R, R10045R, 15-223
    Carb Mfg #'s - DLTX34
    • Verify carburetor number before ordering.
    • Instruction sheet will show parts that are not included in this kit for reassembly purposes only.
