Fits John Deere - A (SN: 648000 and up), [ AO,
AR (SN: 273080 and up) ], G, 60, 620, 630; Replaces: Cotter Pin: 11H236,
Clutch Spring: A352R, Clutch Pressure Plate Spring (Belleville)
Washer: R21647, Clutch Facing: R90215, C614R, Belt Pulley Brake
Lining: AB4748R, AF4748R, RE29790, Clutch Adjusting Nut: 14H862, AD2850R, D2789R, R20228,
Pulley Clutch Disc: AA6129R, AD1027R, AD752R, RE22932, RE29779

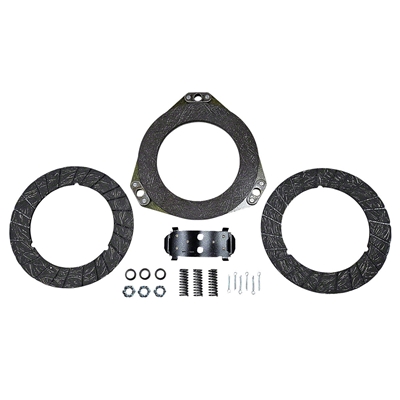

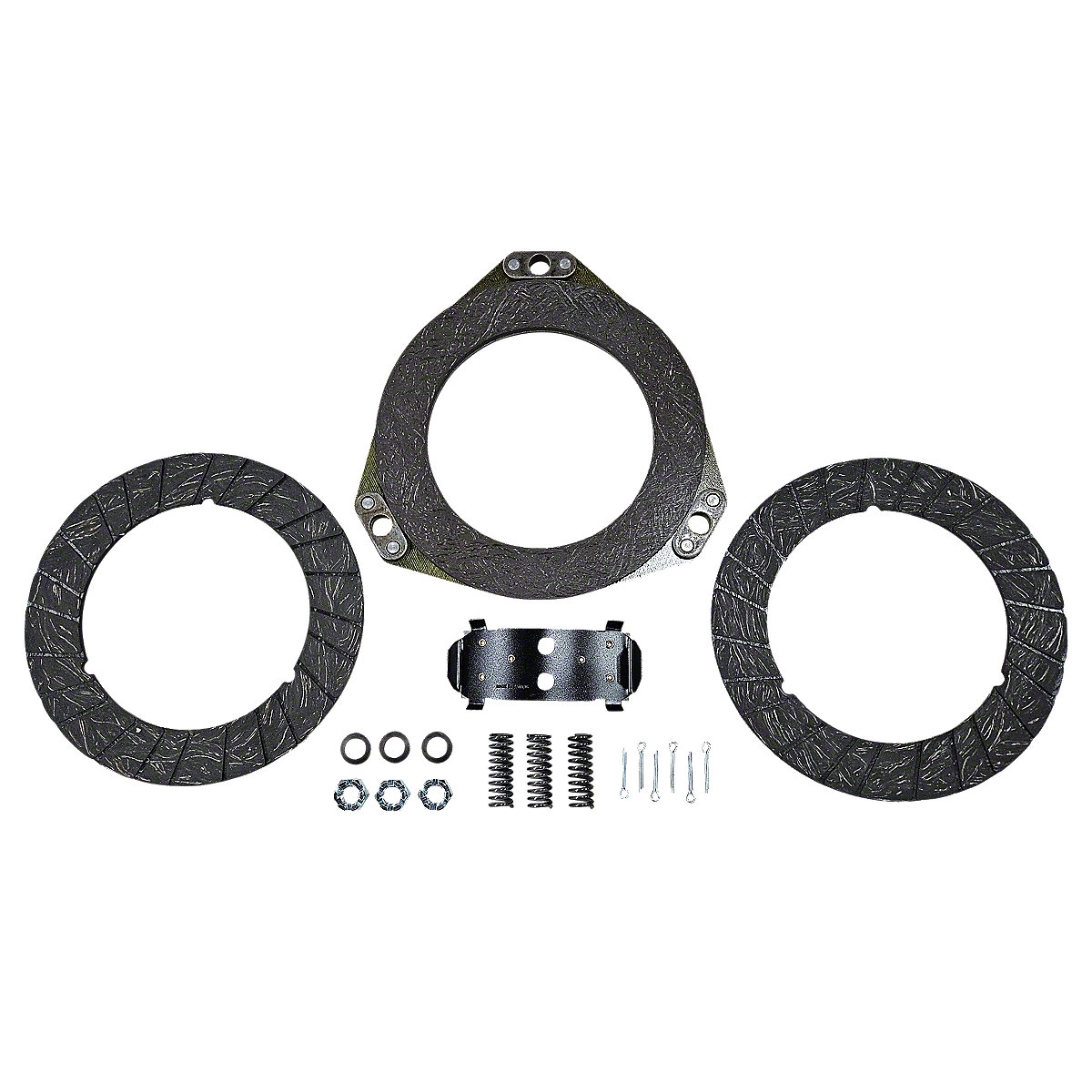

Kit Contains:
(1) JDS545
Pulley Clutch Disc with Bonded Lining
- 10"
disc outside diameter
0.393" thick
(2) JDS538 Clutch
Facing
- 10"
outside diameter
6-3/4" inside diameter
- 0.150"
thick The side with
the grooves faces the driving disc
- 1-5/8"
lining width
(1) ABC187 Belt
Pulley Brake Lining
- Non-asbestos
lining with countersunk brass rivets
(3) JDS880 Clutch
Spring
- 1.915"
long 0.740"
outside diameter
- 0.500"
inside diameter
0.120" wire thickness
- The
clutch disc adjusting spring mounts to the outer cast iron adjusting disc
(3) MIS1134 Clutch
Adjusting Nut
- 9/16"
- 18 NF Grade 5 Slotted hex nut,
9/16"
(3) JDS1626 Clutch
Pressure Plate Spring (Belleville) Washer
- 0.572"
inside diameter 0.937"
outside diameter
- 0.035"
thick Spring
steel
(6) Cotter Pins
