Complete Engine Gasket Set

Complete Engine Gasket Set



Our Price: $499.99
Special Instructions: 20240419


Product Code: IHS6391
Qty:

Description

IH Industrial - Fits: ID6 (diesel with 4.000" bore)
International / Farmall - Fits: [ MD, MDV, ODS6, Super WD6TA, TD6, TD6-61, WD6 (diesel with 4.000" bore) ], [ Super MD, Super MDV, Super MDV-TA, Super WD6 (with D264 diesel engine) ], [ Serviceable for, but rear seal is different: 450, W450 (with D281 diesel engine) ], does not fit gas: Super MTA (with D264 diesel engine), Super W6TA (diesel with 4.000" bore), [ up to Engine SN: 13481: 400, W400 (with D264 diesel engine) ];

Replaces: Head Gasket: 119166A1, Oil Filter Sealing Washer x2: 13727D, Oil Filter Gasket x2: 13728D, Retaining Nut Gasket: 13839D, Water Pump Felt Washer: 20300D, Water Pump Bearing Retainer Gasket: 21839DC, Retainer Felts: 260001R1, Rear Crankcase Felt Seal x2: 260001R2, Water Trap Bowl Gasket: 260708R2, Hydraulic Pump Gasket: 261203R2, Crankcase Front Cover Gasket: 261219R3, Head Gasket Set: 261339R92, Crankcase Rear Oil Seal Plug x2: 268770R2 , Crankshaft Rear Oil Seal Retainer Gasket x2: 271702R1, Oil Filter Header Gasket: 272473R1, Oil Regulating Valve Gasket: 28781D, Conversion Set: 332653R92, Washer x4: 340092R1, Oil Filler Body Gasket: 42733DB, Water Pump Gasket: 45981DA, Thermostat Housing Gasket: 45984DA, Water Outlet Elbow Gasket: 45986DA, Retainer felts: 46132D, Crankcase Rear Dust Seal: 46137D, Fuel Injection Pump Gear Cover Gasket: 46254DA, Fuel Injector Pump Gasket: 46583DB, Breather Pipe Flange Gasket: 46700D, LU Gasket x2: 51044DB, Oil Filter Base Gasket: 51204D, Water Header Gasket x2: 51316DC, Water Trap Gasket: 51527DD, Crankcase Gasket: 51977D, Crankcase Oil Seal Retainer Plate Gasket: 51980D, Oil Pan Gasket: 52001D, Valve Cover Gasket: 52019D, Bracket Gasket: 52129D, Front End Intake Manifold Gasket x2: 52520DB , Exhaust Manifold Gasket x2: 52649D, Intake Manifold gasket: 52650DC, Carburetor Gasket: 53459DA, Air Cleaner Pipe Gasket: 54040D, Magneto Flange Gasket: 55780DE, Breather Gasket: 59481DC, Washer: 59658D, Push Rod Chamber Side Plate Gasket x2: 60570D, Valve Cover Stud Washer x2: 62866D, Bottom Seat Plate Gasket: 64521D, Felt plugs: 25093D, 25093DA, Center Retainer gaskets: 259530R1, 259530R2, Crankcase Front Plate Gasket: 261218R3, 51976D, Retainer Gasket: 46240DA, 46240DB, Front Crankseal: 258511R91, 357972R91, 357977R91, 358511R91, 53872D

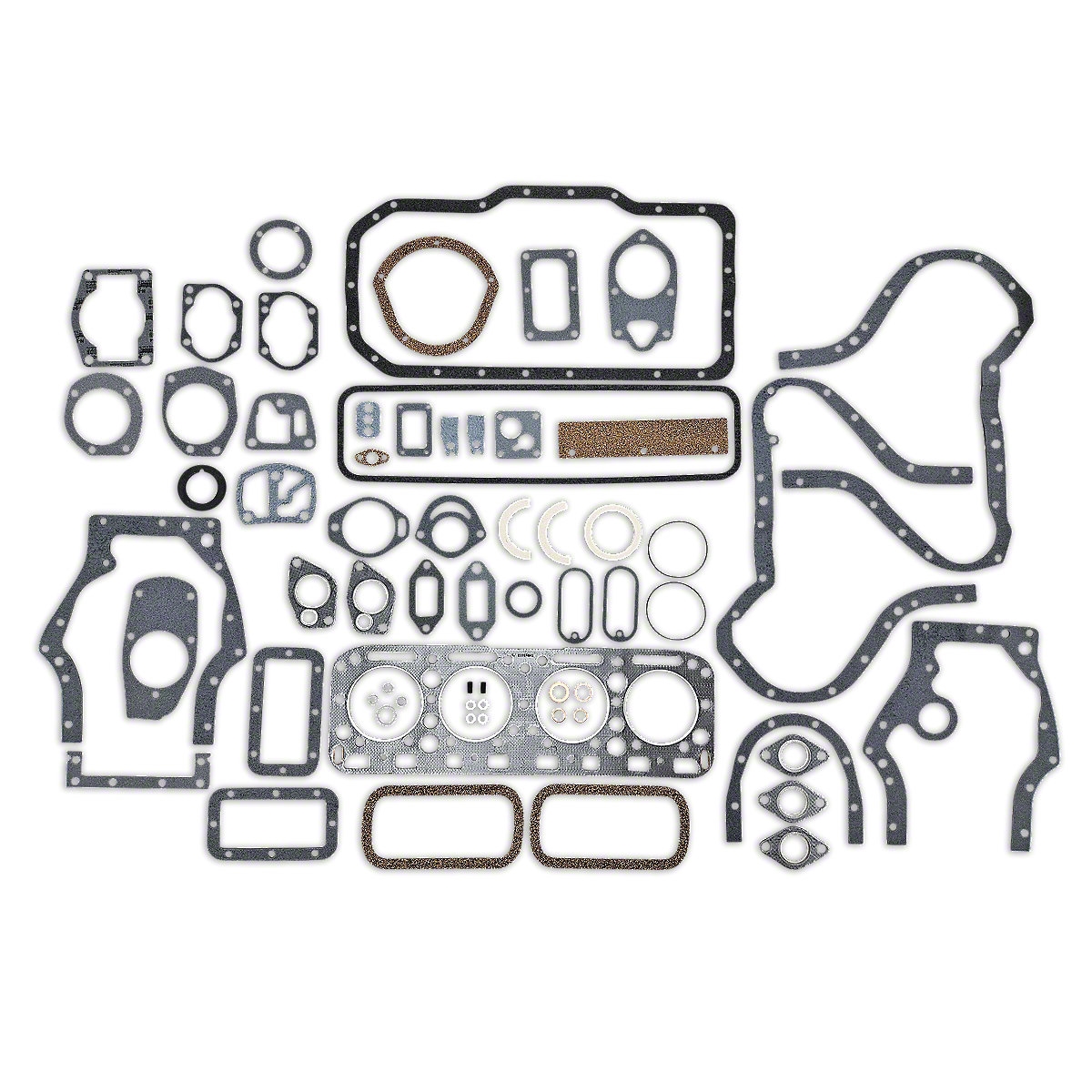

Kit Includes: (1) - 52019D (IHS6394) Valve Cover Gasket
(1) - 45986DA (IHS5698) Water Outlet Elbow Gasket
(1) - 45984DA (IHS1466) Thermostat Housing Gasket
(1) - 119166A1 (IHS6403) Head Gasket
(2) - 62866D Valve Cover Stud Washer 5/64'' thick x 13/32'' I.D.
(2) - 52520DB Front End Intake Manifold Gasket
(2) - 52649D Exhaust Manifold Gasket
(1) - 52650DC Intake Manifold gasket
(1) - 258511R91 (IHS2445) Front Crankshaft Seal
(1) - 59658D Washer
(1) - 46583DB Fuel Injector Pump Gasket
(2) - 268770R2 Crankcase Rear Oil Seal Plug
(2) - 260001R2 Rear Crankcase Felt Seal
(2) - 13728D Oil Filter Gasket
(1) - 13839D Retaining Nut Gasket
(1) - 46254DA Fuel Injection Pump Gear Cover Gasket
(1) - 53459DA Carburetor Gasket
(1) - 51204D Oil Filter Base Gasket
(2) - 60570D (IHS6397) Push Rod Chamber Side Plate Gasket
(1) - 54040D Air Cleaner Pipe Gasket
(1) - 51527DD Water Trap Gasket
(1) - 64521D Bottom Seat Plate Gasket
(2) - 51316DC Water Header Gasket
(2) - 51044DB LU Gasket
(1) - 52001D Oil Pan Gasket
(1) - 51977D Crankcase Gasket
(1) - 28781D Oil Regulating Valve Gasket
(1) - 46137D Crankcase Rear Dust Seal
(4) - 340092R1 Washer
(2) - 271702R1 Crankshaft Rear Oil Seal Retainer Gasket
(1) - 52129D Bracket Gasket
(1) - 46700D Breather Pipe Flange Gasket
(1) - 20300D (IHS5683) Water Pump Felt Washer
(1) - 42733DB Oil Filler Body Gasket
(1) - 260708R2 Water Trap Bowl Gasket
(1) - 55780DE (ABC556) Magneto Flange Gasket
(1) - 59481DC Breather Gasket
(1) - 261218R3 Crankcase Front Plate Gasket
(1) - 261219R3 Crankcase Front Cover Gasket
(2) - 13727D Oil Filter Sealing Washer
(1) - 51980D Crankcase Oil Seal Retainer Plate Gasket
(1) - 51976D Crankcase Front Plate Gasket
(1) - 261203R2 (ABC4701) Hydraulic Pump Gasket
(1) - 272473R1 Oil Filter Header Gasket
(1) - 45981DA (IHS5628) Water Pump Gasket
(1) - 21839DC Water Pump Bearing Retainer Gasket
