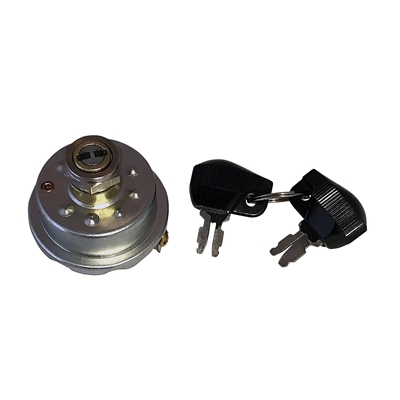

189527M91 Ignition Switch (Key Switch)
189527M91 Ignition Switch (Key Switch)

Alternative Views:
189527M91 Ignition Switch (Key Switch)
Our Price: $64.99
Special Instructions: 261


Product Code: MFS5953
Qty:

Description

  • AGCO - Replaces: 189527V91
    MF Industrial - Fits: Fits models with dash light: 202 (SN: 306493 and up), 204 (SN: 342499 and up)
    Massey Ferguson - Fits: Super 90 (Gas and LP), Fits gas models with dash light: 35 (Gas and LP SN: 216684 and up with regular transmission (6 forward speeds and two reverse) and Multi-Power with dash light), 50 (Gas and LP, SN: 528971 and up), 65 (Gas and LP, SN: 685394 and up); Replaces: 189527M91
    Massey Harris - Fits: Fits models with dash light: 50 (Gas and LP, SN: 528971 and up)

    See ABC116 for tractors without dash lights.

    The early MF-35 Deluxe and all MF-35 Specials have the ignition switch on the lower right side of the dash and the starter button on the lower left side of the dash, same is true for the MF-35 Turf and Utility models and the Work Bull models derived from the MF-35.
    The early MF-50 and early MF-65 as well as the industrial derivatives also have the ignition switch on the lower right side of the dash and the starter button on the lower left side of the dash. ALL OF THESE USE THE ABC116.

    When Multi-Power was added the lower left corner of the dash was used to mount the Multi-Power shift lever and the ignition switch was moved to the left side of the dash next to the starter button. The is true for the MF-35 as well as the MF-50 and MF-65 models. Thus tractors with Multi-Power have the ignition switch and starter button on the lower left side of the dash and use the MFS5953 ignition switch. These models also came with the "Panel Lamp" or dash lamp between the steering wheel and the tractormeter (tachometer).

    MF-35 Specials which were not available with Multi-Power and MF-35 Deluxe models without Multi-Power continued to use the dash with the starter button on the left side and the ignition switch on the right side.

    As I recall some of the last MF-35 Deluxe models built without Multi-Power had the Multi-Power style dash with a blanking plate over the slot for the Multi-Power lever. This is not indicated in the parts book but those tractors with the ignition switch and starter button on the lower left side of the dash used this ignition switch MFS5953.


    • 5 Position Switch
      • OFF - off
      • IGN - ignition
      • IGN & LAMPS - ignition, head lamps and rear lamps
      • IGN & ALL LAMPS - ignition, head lamps, rear lamps, and panel lamp (dash lamp)
      • Lamps only - head lamps, rear lamps, and panel lamp (dash lamp)
    • 4 Terminals
      • B = battery
      • I = ignition
      • H = head lamps and rear lamps
      • A = panel lamp (dash lamp)
    • 3/4" Post O.D.
    • Includes 2 keys (KEY3302)
