Hydraulic Pump Repair Kit
Hydraulic Pump Repair Kit

Hydraulic Pump Repair Kit
Our Price: $49.99
Special Instructions: 261


Product Code: MFS3567
Qty:

Description

  • MF Industrial - Fits: [ 202, 203, 204, 205, 302, 304 (using 184473M93 hydraulic pump) ]
    Massey Ferguson - Fits: [ 168, 50, 65 (using 184473M93 hydraulic pump) ], 35 (diesel (SN: 231715 and up) using 184473M93 hydraulic pump), 35 (gas (SN: 230456 and up) using 184473M93 hydraulic pump); Replaces: 830997M1, 830997M91, A-830997M1

    See instructions for diagram of pump that is serviced.
    Pump kits cannot be returned once opened.
    This kit is designed to rebuild 184473M93 (MFS3751) hydraulic pump.
    This kit is only correct for the #184473M93 pump using a strainer filter and 0.091" diameter pump pistons, flat rings and 10 spline camshaft. Chamber valves also fit earlier and later pumps.
    Note: Verify pump before ordering as there were three (3) different pumps used.

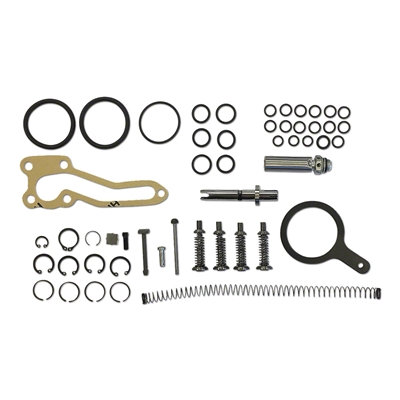

    Includes the following part #'s:
    190848M1, 892604M1 Piston rings (4)
    180933M1 Cam follower (1)
    195568M1 Link screw (1)
    354187X1 Clevis pin (1)
    831519M1 O-rings (13)
    830997M91 Valve chamber repair kit, includes all marked *
    180929M1 Inlet valves (4) *
    180927M1 Inlet valve springs (4) *
    180930M1 Outlet valves (4) *
    180928M1 Outlet springs (4) *
    359001X1 O-rings (4) *
    827718M2 Snap rings (4) *
    359002X1 O-rings (2)
    180937M91 Oscillator drive assembly (1)
    180940M1 Valve spring (1)
    180942M2 Drive retainer disc (1)
    180941M1 Snap ring (1)
    195576M1 Snap ring (1)
    195946M1 Snap ring (1)
    189427M91 Pump control valve (1)
    180945M1 Valve sealing washers (3)
    189364M91 Valve control rod (1)
    189366M1 End cover gasket (1)
    831907M1 O-ring (1)
    190537M91, 828927M91 Saftety valve (1)
    831452M1 O-ring (1)
