- MF Industrial - Fits: MF Forklift: 2200 (With forged fingers not stamped steel fingers), MF Industrial: 20 (Some With forged fingers not stamped steel fingers, sn 9A130430 and up), 202 (With forged fingers not stamped steel fingers, sn 311321 and up), 203 (With forged fingers not stamped steel fingers, sn 659002841 and up), 2135 (With forged fingers not stamped steel fingers), [ MF40, MF40 (With forged fingers not stamped steel fingers, sn 9A130430 and up) ]
Massey Ferguson - Fits: Ferguson Tractor: TO35 (Some With forged fingers not stamped steel fingers, sn 177395 - 177519 and sn 177538 and up), MF Ag Tractor: 50 (With forged fingers not stamped steel fingers, sn 515433 and up), MF Tractor: 135 (With forged fingers not stamped steel fingers, both with 10 SPLINE PTO Disc), 150 (With forged fingers not stamped steel fingers, both with 10 spline PTO Disc), [ 35, 35 (With forged fingers not stamped steel fingers) ], 50 (With forged fingers not stamped steel fingers, sn 515433 and up); Replaces: 193930M92, 512355M91, 516068M93, 526666M93
This pressure plate has bolts that once clutches are aligned with alignment tool and pressure plate is bolted to flywheel these 3 bolts must be removed to release the pressure plate fingers to function properly.

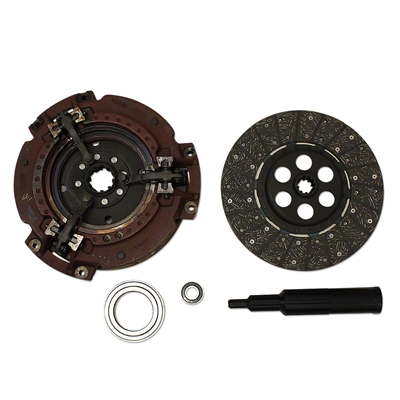

- New dual clutch kit includes clutch disc, pressure plate assembly, pilot bearing, throwout bearing and alignment tool
- 10 Splines
- 11" 10 spline rigid disc
- 1 1/8" spline ID
- 11" 10 spline double clutch pressure plate
- 0.485" width across forged finger
- 12 spring pressure plate assembly
- Please make sure to check your pressure plate finger style and PTO clutch spline count before ordering
|
|
|
 |
|
 |
|
