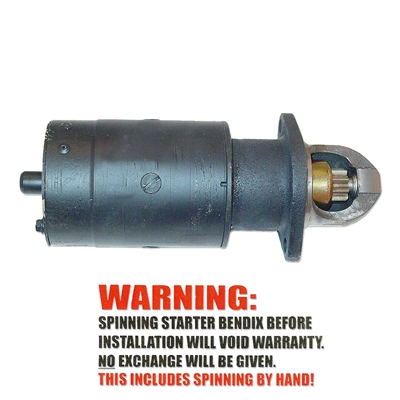

Ferguson TE20 and TEA20 Starter
Ferguson TE20 and TEA20 Starter

Ferguson TE20 and TEA20 Starter
Our Price: $399.99
Special Instructions: 261


Product Code: MFS069
Qty:

Description

  • Massey Ferguson - Fits: Ferguson Tractor: TE20 ( with an 80MM engine), TEA20 ( when equipped with the 85 MM series engine and up to SN: 200001 if using starter # 25519 with nose cone covering starter drive (for starters with battery cable on armature housing not on the end brush cap)); Replaces: 25519, 829853M91

    • If you are not sure which starter your Continental engine uses, check the flywheel ring gear location on the flywheel:
      • If the ring gear is toward the front of the engine when mounted on the flywheel, you have a Lucas; order starter MFS069.
      • If the ring gear is toward the rear of the flywheel, you have a DELCO which is NOT available at this time.
    • Before installing your new starter, make sure the below conditions are first checked and satisfied (warranty void if broken.)
      • The (main) reasons a starter nose will break:
        • Bent armature shaft
        • Ignition timing is incorrect
        • Improper drive to ring gear clearance
        • Defective distributor cap / wires causing the engine to kick back
    • Do NOT spin drive before installing.


    • New, not rebuilt
    • Replaces the original Lucas Starter
    • Can be used on 6 volt or 12 volt systems
    • 2 bolt nose cone
    • 2.728" from the inner bolt flange to the end of the nose cone
    • 3.274" from the outer bolt flange to end of nose cone
    • 9 tooth drive
