Deluxe Fastener Kit
Deluxe Fastener Kit

Deluxe Fastener Kit
Our Price: $74.99
Special Instructions: 261


Product Code: JDS3694
Qty:

Description

  • Fits John Deere - [ A, AH, AN, ANH, AW, AWH (all SN: 648000 and up) ], [ B, BN, BNH, BW, BW40, BWH, BWH40 (all SN: 275242 and up) ], [ G, GH, GN, GW (all SN: 48608 and up) ]; Replaces: 12H10, 12H291R, 24H1136, A2181, A4126R, A4668R, B1544R, R20817

    Depending on your application, you may have extra parts.

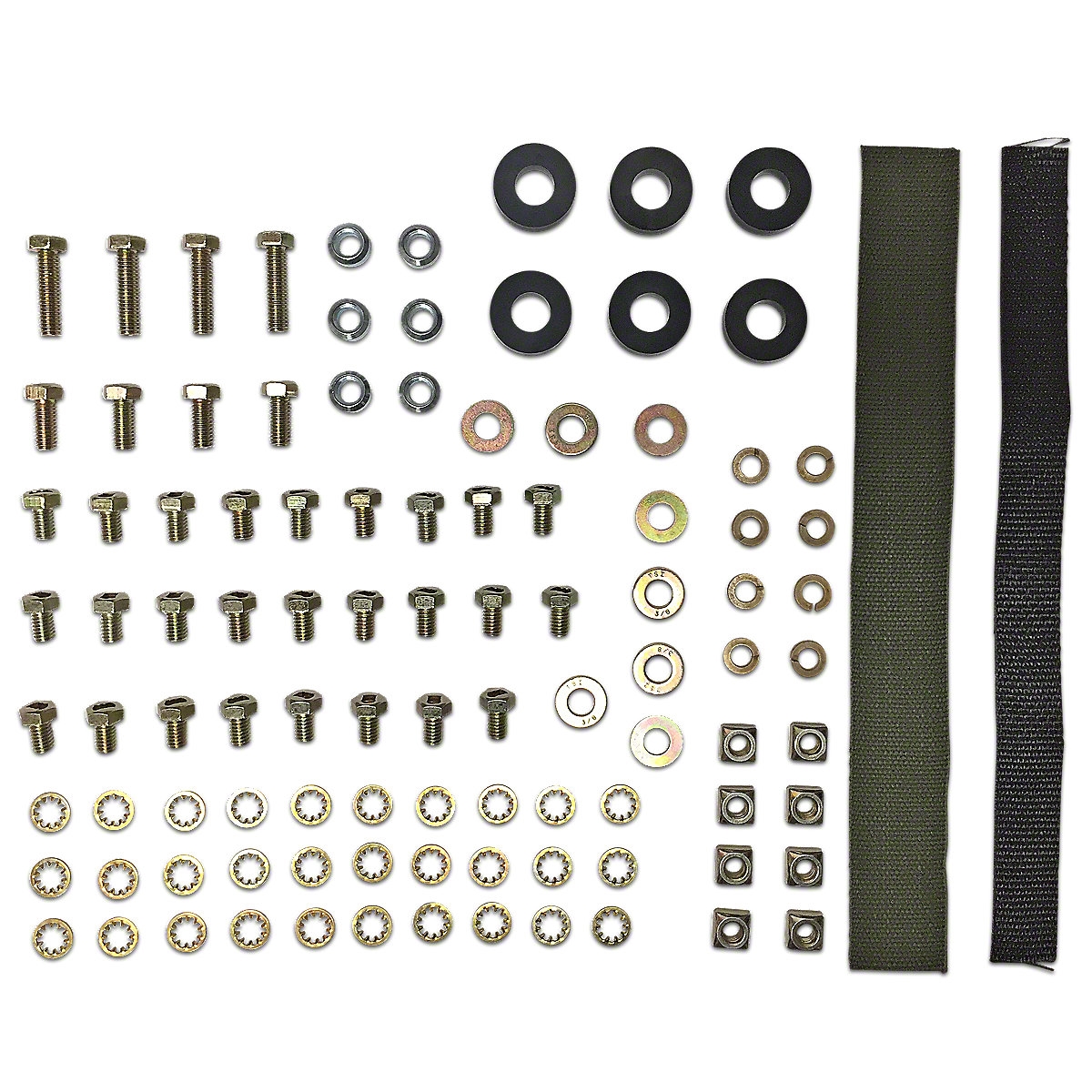

    Approximately 102 Piece Kit

    • Includes hardware for:
      • Hood
      • Medallion (aka nose cone)
      • Grilles
      • Center plate
      • Radiator shutters
      • Flywheel cover
    QTY Hardware Description Hardware Dimension Replaces

    4 Hex Head Clutch Bolt 5/16" x 1-1/4"
    4 Hex Head Clutch Bolt 5/16" x 3/4"
    26 Hex Head Clutch Bolt 5/16" x 1/2"
    30 Shake Proof Washer 5/16" 12H291R
    8 Flat Washer 0.344" ID x 0.688" OD 24H1136
    8 Square Nut 5/16" A4126R
    8 Split Lock Washer 5/16" 12H10
    6 Spacer 11/32" X 5/8" R20817
    6 Rubber Washer 0.594" ID x 1.250" OD A4668R
    1 Cushion 1' x 1-1/2" Piece A2181
    1 Hood Cushion 1' x 1" Piece B1544R
