Home
>
John Deere
>
Steering
>

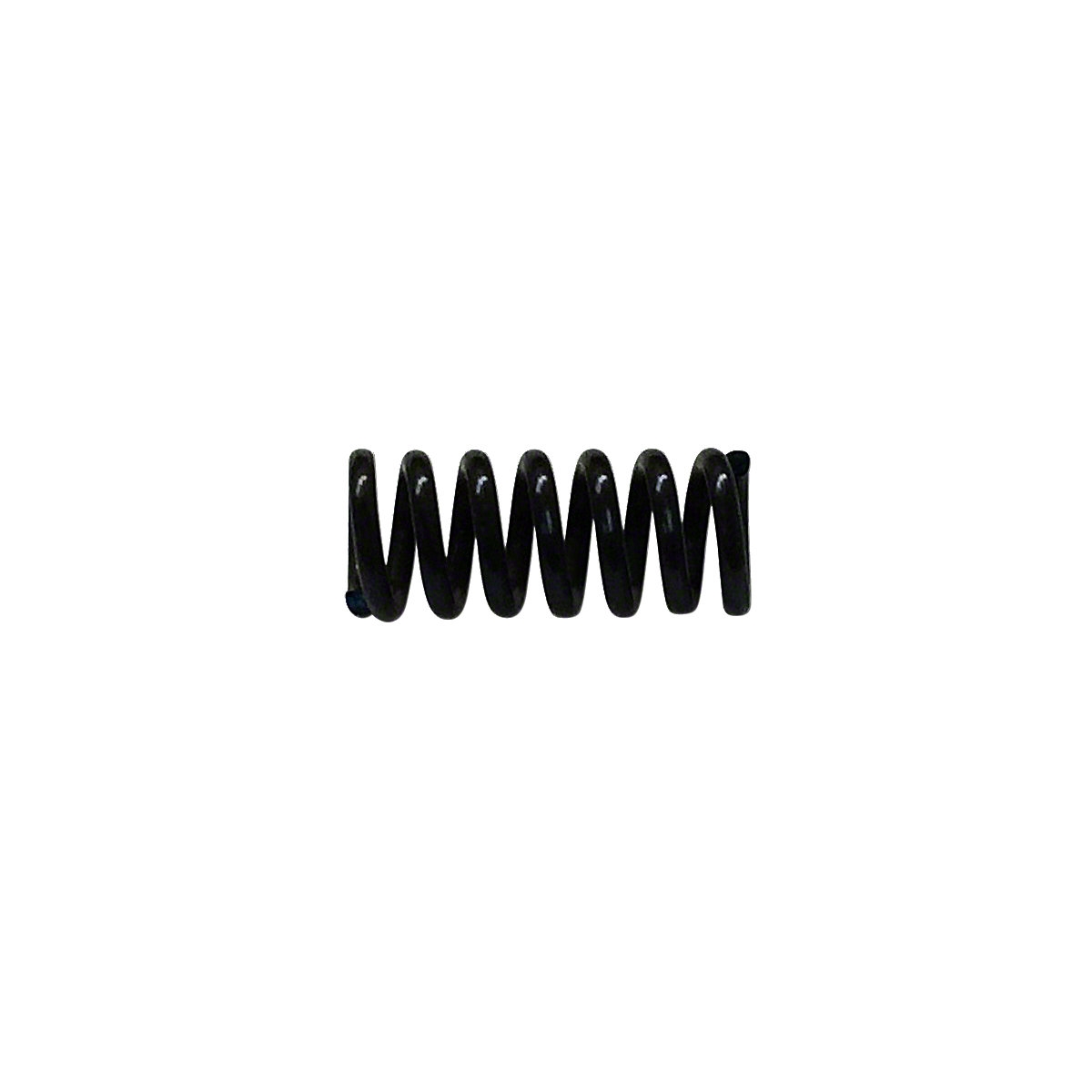

Spring
Our Price:
$
3.99
Special Instructions:
20240419
Product Code:
JDS3287
Qty:
Description
JD Industrial
- Fits: [ Industrial, Backhoe / Loader; used as a steering valve piston spring: 544 , 544A , 544B (1 used) ], Motor Grader; used as a steering valve piston spring: 570 (up to SN: 2365; 1 used)
Fits John Deere
- [ Compactor; used as a steering valve piston spring: 646, 646B (1 used) ], [ Cotton Picker; used as a brake check valve spring: 9940, 9950 (2 used) ], [ Industrial, Backhoe / Loader; used as a steering valve piston spring: 500, 644A, 644B (1 used) ], Industrial; used as a brake check valve spring: 500 (2 used), [ Log Skidder; used as a steering valve piston spring: 540, 540A (1 used) ], Motor Grader; used as a steering valve piston spring: 570A (up to SN: 2365; 1 used), [ used as a brake check valve spring: 2510, 2520, 3020, 4000, 4030, 4040, 4040S, 4050, 4055, 4230, 4240, 4240S, 4250, 4255, 4320, 4350, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4850, 4955, 4960, 5010, 5020, 6030 (2 used) ], 3010 (SN: 19800 and up), 4010 (SN: 20200 and up; 2 used), 4020 (2 used ), used as a live PTO clutch cam adjusting spring: 50 (SN: 5017822 and up; 1 used), [ 520, 530, 620, 630, 720, 730, 80, 820 2 cylinder, 830 2 cylinder, 840 2 cylinder (1 used) ], 60 (SN: 6033676 and up; 1 used), 70 (gas / LP; SN: 7010776 and up; 1 used), 70 (diesel; 1 used), used as a power front wheel drive control valve relief spring: 3020 (SN: 123000 and up; 1 used), [ 4000, 4040, 4230, 4240, 4320, 4430, 4440, 4520, 4620, 4630, 4640 (1 used) ], 4020 (SN: 201000 and up; 1 used ), [ used as a steering valve piston spring: 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4230, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520 (1 used) ], [ used as a transmission clutch release spring: 5010, 5020, 6030 (1 used) ]; Replaces:
A4816R
The overall length of this spring is 0.500", the O.D. is 0.219" and the wire diameter is 0.035". Priced and sold individually.
The overall length of this spring is 0.500", the O.D. is 0.219" and the wire diameter is 0.035". Priced and sold individually.
