Rebore Kit (0.125" overbore)
Rebore Kit (0.125" overbore)

Rebore Kit (0.125" overbore)
Our Price: $699.99
Special Instructions: 261


Product Code: JDS3034
Qty:

Description

  • Fits John Deere - [ A, AH, AN, ANH, AW, AWH (all up to SN: 584000) ], [ AO, AR (both up to SN: 272000) ]; Replaces: AP134-125, SP134-125

    • This 2-cylinder rebore kit has a 0.125" overbore (5.625" diameter),
    • 1.750" wrist pin
    • 5.545" compression height
    • 1.425" crown to top ring.
    • The aluminum pistons are designed for increased compression

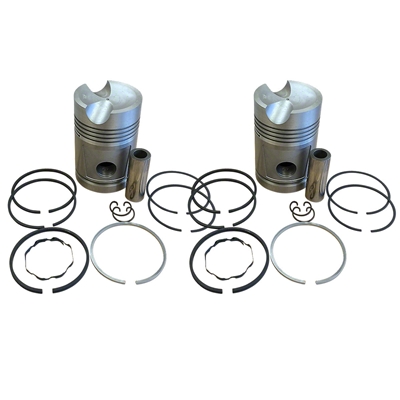

    • Kit includes pistons, rings, wrist pins, and clips.
    • NOTE: Older serial numbers may require boring wrist pin bushing (up to 1.750" pin).
    • Piston to cylinder clearance is .001 per inch of bore


    This 2-cylinder rebore kit has a 0.125" overbore (5.625" diameter), 1.750" wrist pin, 5.545" compression height, and 1.425" crown to top ring. The aluminum pistons are designed for increased compression. Kit includes pistons, rings, wrist pins, and clips. NOTE: Older serial numbers may require boring wrist pin bushing (up to 1.750" pin).
    Verify tractor model, serial number breaks and bore size needed before ordering
