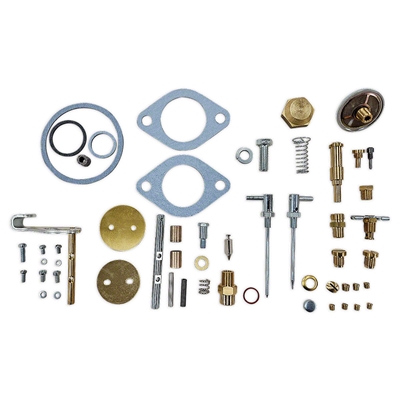

Premium Carburetor Repair Kit
Premium Carburetor Repair Kit

Premium Carburetor Repair Kit
Our Price: $114.99
Special Instructions: 261


Product Code: JDS2684
Qty:

Description

  • Fits John Deere - [ A, AH, AN, ANH, AO, AR, AW, AWH (with DLTX24, DLTX53 carburetors) ]; Replaces: (1) Carburetor to manifold gasket: 321R, (1) Load needle: AR10018R, (1) Idle needle: AR10020R, (1) Strainer assembly: AR10021R, (1) Choke shaft & lever: AR10043R, (1) Drain petcock: AR10075R, (1) Float valve & seat: AR10077R, (1) Air cleaner to carb gasket: D1034R, (1) Bowl nut gasket: R10014R, (1) Throttle disc: R10024R, (1) Strainer gasket: R10025R, (1) Bowl gasket: R10026R, (1) Idle adjusting screw: R10036R, (1) Float pivot pin: R10049R, (2) Float bearing screws: R10050R, (1) Economizer plug: R10054R, (1) Throttle shaft: R10061R, (1) Bowl nut: R10063R, (3) Brass plugs: R10067R, (1) Throttle stop spring: R10076R, (1) Nozzle spring: R10078R, (1) Throttle shaft packing: R10114R, (1) Nozzle: R10116R, (2) Throttle shaft bushings: R10139R, (1) Throttle shaft plug: R10151R, (1) Float valve seat gasket: R10172R, (2) Lock washers: 12H64R, A765R, (2) Screws: 21H971R, 21H962R, (1) Brass plug: R10045R, 15-223, R10041R
    Carb Mfg #'s - Marvel Schebler: DLTX24, DLTX53
    • Verify carburetor number before ordering.
    • Instruction sheet will show parts that are not included in this kit for reassembly purposes only.
