Premium Carburetor Repair Kit
Premium Carburetor Repair Kit

Premium Carburetor Repair Kit
Our Price: $114.99
Special Instructions: 261


Product Code: JDS2680
Qty:

Description

  • Fits John Deere - [ BN, BNH, BW, BWH, BWH40 (with DLTX67 or DLTX73 carburetor) ], All-Fuel (to to SN: 5015950): 50 (DLTX73 carburetor (single induction)), Gas and All-Fuel (SN: 96000 & up) : B (with DLTX67 or DLTX73 carburetor); Replaces: (1) Idle adjusting screw: 21H994R, (1) Carburetor to manifold gasket: 321R, (1) Load needle: AR10018R, (1) Idle needle: AR10020R, (1) Strainer assembly: AR10021R, (1) Throttle shaft: AR10058R, (1) Choke shaft & pin: AR10063R, (1) Drain petcock: AR10075R, (1) Float valve & seat: AR10077R, (1) Air cleaner to carb gasket: D1034R, (1) Bowl nut gasket: R10014R, (1) Strainer gasket: R10025R, (1) Bowl gasket: R10026R, (1) Float lever pin: R10049R, (2) Float bearing screws: R10050R, (1) Economizer plug: R10056R, (1) Bowl nut: R10063R, (2) Brass plugs: R10067R, (1) Throttle stop spring: R10076R, (1) Nozzle spring: R10078R, (1) Throttle disc: R10080R, (1) Idle adjusting screw spring: R10104R, (1) Throttle shaft packing: R10114R, (1) Nozzle: R10117R, (2) Throttle shaft bushings: R10140R, (1) Throttle shaft plug: R10151R, (2) Bowl vent baffles: R10163R, (1) Float valve seat gasket: R10172R, (2) Lock washers: 12H64R, A765R, (2) Screws: 21H971R, 21H962R, (1) Brass plug: R10041R, R10045R, 15-223
    Carb Mfg #'s - DLTX67, DLTX73

    Verify carburetor number before ordering.
    • If your number is not listed below, this kit is not the correct kit for your application.

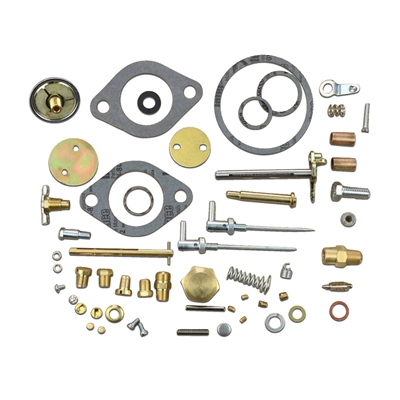

    Includes parts shown in picture above.
    • For reassembly purposes only, instruction sheet may depict parts that are not included in this kit.
