Piston Ring Set 2-Cylinder John Deere H 3-9/16" standard bore
Piston Ring Set 2-Cylinder John Deere H 3-9/16" standard bore

Piston Ring Set 2-Cylinder John Deere H 3-9/16" standard bore
Our Price: $67.99
Special Instructions: 261


Product Code: JDS2158
Qty:

Description

  • Fits John Deere - [ H, HN, HW (w/ 3-9/16" standard bore, (2) 0.125" compression rings, (1) 0.125" and (1) 0.250" oil rings) ]; Replaces: AH1131R

    Measure old rings before ordering. Do not order by tractor model only. Due to the many different piston manufacturers, there can be as many as 8 different ring set available for one particular engine. To ensure you order the correct rings, we will need the following information: 1.) bore size, 2.) thickness of each ring, 3.) how many of each ring thickness per piston. Rings can not be returned if opened.

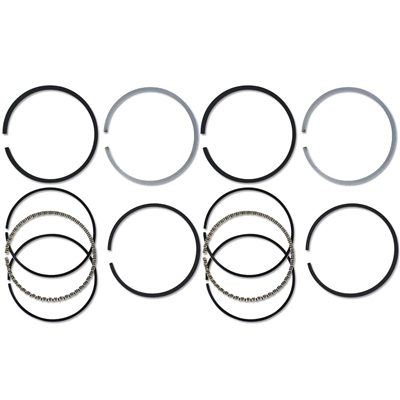

    • This Set includes:
      • 3-9/16" standard bore
      • (4) 0.125" compression rings
      • (2) 0.125" oil ring
      • (2) 0.250" oil ring
