IH Industrial - Fits: I12 (Early AC replacement fuel pumps (AC# 1521676 or IH# 28659HA) (which have a hair-spring check valve)), T9 (up to SN: 9440)
International / Farmall - Fits: [ F12, F14, I9, O12, O14, W12, W14 (Early AC replacement fuel pumps (AC# 1521676 or IH# 28659HA) (which have a hair-spring check valve)) ], T6 (4 cyl, up to SN: TBKM6887), W9 (SN: 501 - 31732, Early AC replacement fuel pumps (AC# 1521676 or IH# 28659HA) (which have a hair-spring check valve))
Not for use with methanol blended gas
This is for the original O.E.M. pump (part # 24527D) and the early AC pump. Both featured a hair spring check valve. Also, the diaphram is attached to the shaft with a nut.
Can be used for the late AC replacement pump, however the caged check valve, which is included in IHS164, must be reused. Also, the shaft must be ground to remove the old diaphram, and peened over after the new diaphram is attached.
Kit includes:
diaphram mounting gaskets
fuel bowl screen and gasket pivot shaft
plunger springs
retainers packings

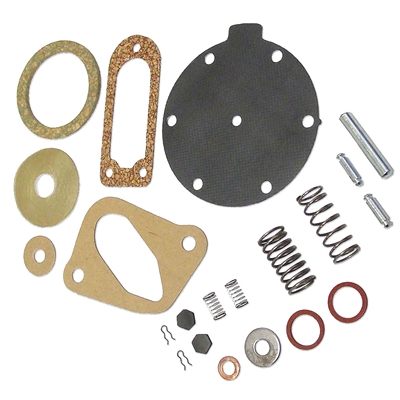

Includes parts shown in picture above.
Note: For reassembly purposes only, instruction sheet depicts parts that are not included in this kit.
