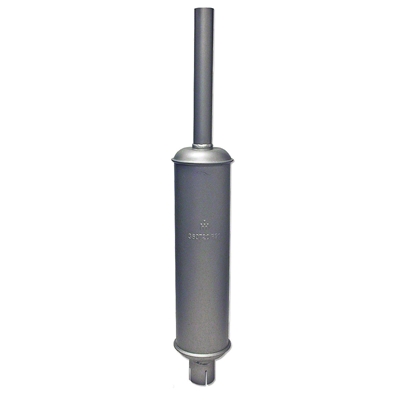

International / Farmall - Fits: AV, B, BN, C, Super A, Super A-1, Super AV, Super AV-1, Super C, 100, 130, 200, 230, Farmall: A;
Replaces: 356004R91, 357595R91, 360720R91, 48832D, 48832DA, 48832DB, 48832DC
If rain cap is needed, order IHS2563, IHS2291 or RCS002
If clamp is needed, order ABC2625, ABC2519 or ABC576
If a larger diameter outlet is desired, then please see IHS2535. A larger diameter outlet allows the muffler to run cooler so it is less prone to discoloration from heat. As an added bonus, there is less backpressure on the engine so the larger diameter outlet will lead to a little more horsepower over a smaller diameter outlet.
Aluminized steel with heat resistant silver paint Baffled like original
*** Not correct for 140, 240, 330, 340, 404 or 3414
For these models, please see IHS2535
2-1/4" inlet length 1.945" inlet inside diameter
16-3/16" shell length 4-1/4" shell diameter
10" outlet length 1.393" outlet outside diameter
28-1/2" overall length Embossed with IH and part number
