IH Industrial - Fits: I4, I6, T9
International / Farmall - Fits: H, HV, I9, M, MV, O4, O6, OS4, OS6, Super H, Super HV, Super M, Super MTA, Super MV, Super W4, Super W6, Super W6TA, Super W9, T6, TD6 (up to SN: 22501), W6, W9, WD6, WDR9, WR9, Crawler: T14; Replaces: 41934DB
This gauge is shipped with 1/8" male pipe threads. Unless you can reuse your old adapter fitting for the oil line to the gauge, you will need one of the following depending on the line size: ABC538 (1/8" line) or IHS626, ABC2353 (1/4" line).

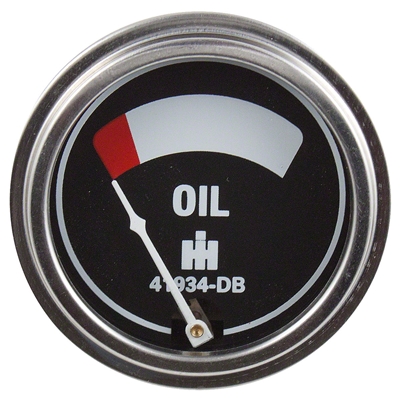

This IH oil gauge includes a chrome bezel
1/8" NPT male thread pitch Measures from 0 to 75 PSI
The rear of the gauge features a bracket and studs for mounting on the dash.
The IH logo was used in 1947 and later. For gauges with IHC logo used up to 1946, see our IHS452 gauge.
