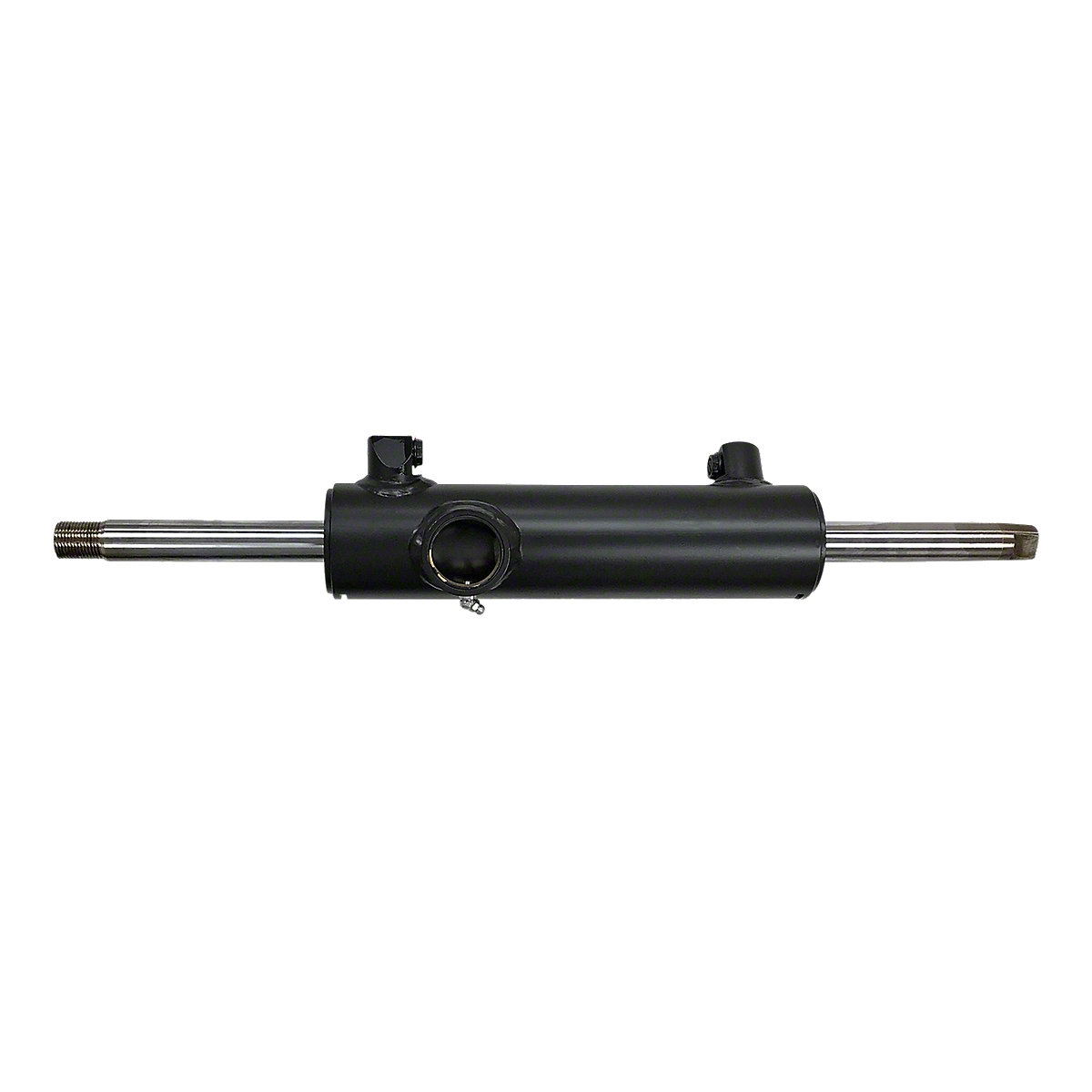

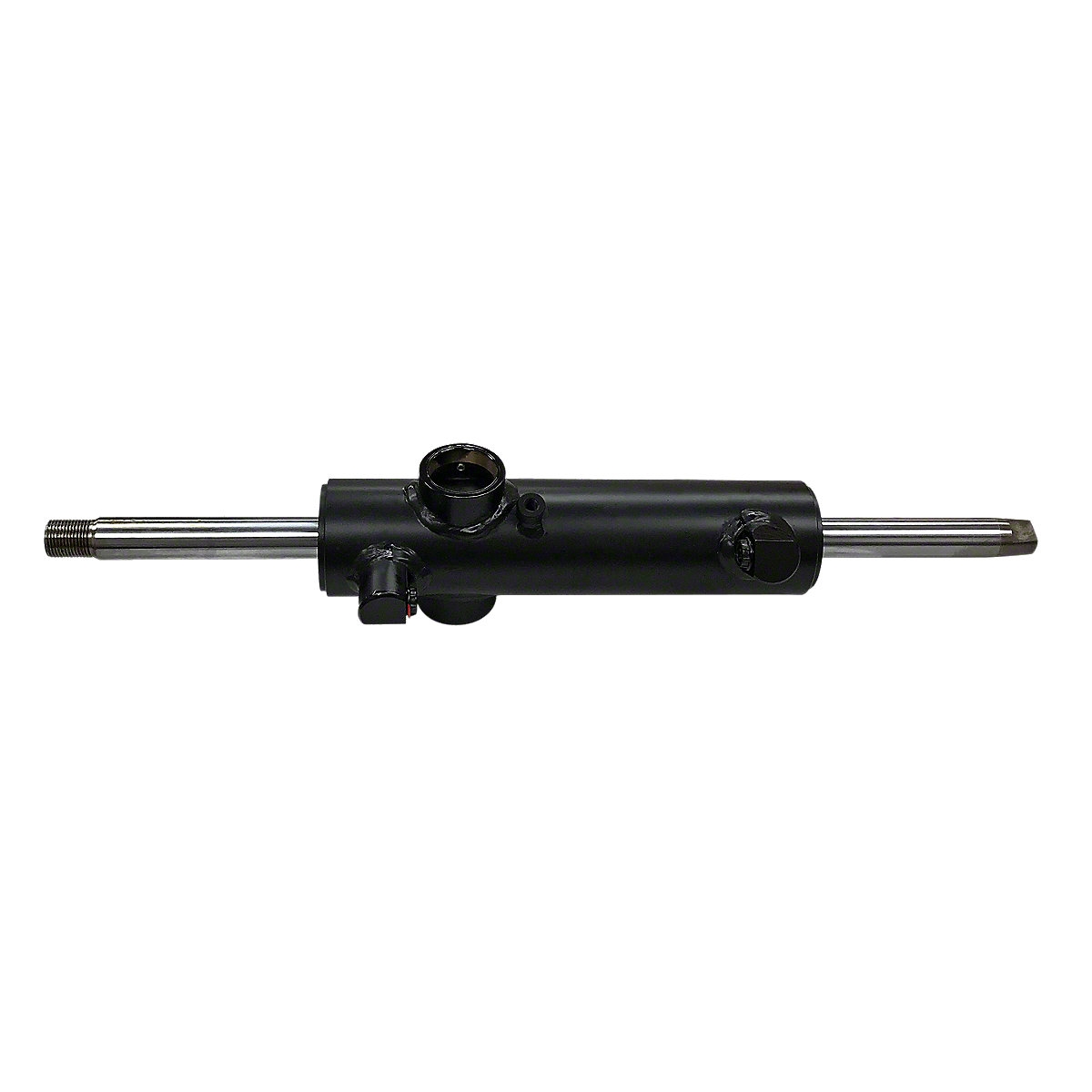

Hydraulic Power Steering Cylinder, IH 63864C93

International / Farmall - Fits: Hydro 100 (SN: 12695 & up), 1066 (SN: 8314 & up), 1466 (SN: 7726 & up), 1486 (SN: 12426 & up), 1566 (SN: 13609 & up), 1568 (SN: 8021 & up), 3088, 3288, 3688, 766 (SN: 7176 & up), 886 (SN: 11560 & up), 966 (SN: 8057 & up), 986 (SN: 13975 & up); Replaces: 63864C91, 63864C92, 63864C93

Power Steering Cylinder Ball Joint 71820C91 (IHS6095) sold separately.

24" overall rod length 11.5" body length

2.75" cylinder diameter 1" rod diameter

7/8"-14 Threaded stub shaft on RH side Late production cylinder type
