International / Farmall - Fits: The following models with remote 3-1/2" x 8" hydraulic cylinder attachment: H, HV, M, MD, MDV, MV, Super H, Super HV, Super MDTA, Super MDV-TA, Super MTA, Super MVTA, Super W4, Super W6, Super W6TA, Super W9, Super WD6, Super WD6TA, Super WD9, W9, WD9, WDR9, WR9, WR9S, [ Used on the following Farmall & International models with fast hitch or hydraulic remote cylinder: 300, 340, 350, 460, 560 (all using 3-1/2" x 8" hydraulic cylinder) ], [ Used on the following Farmall models with fast hitch or hydraulic remote cylinder: 400, 450 (all using 3-1/2" x 8" hydraulic cylinder) ], Used on the following International model with fast hitch or hydraulic remote cylinder: 330 (all using 3-1/2" x 8" hydraulic cylinder);
Replaces: 363138R91, 363138R92, 363138R93, 363138R94
Note: Measure cylinder housing I.D. before ordering.
Fits cylinders with the following part numbers: 354037R95, 360997R91, 366275R91, 371208R92, 371292R91, 374186R91.

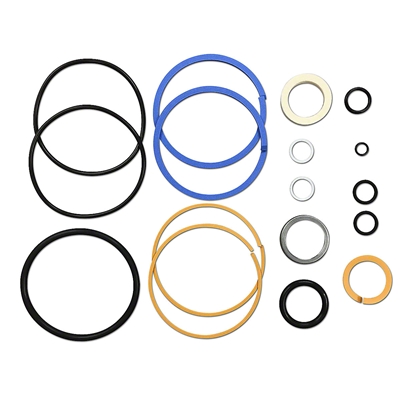

Replaces IH kit #'s: 363138R91, 363138R92, 363138R93, 363138R94 & individual part #'s (1) 350429R1, 238-5114 O-ring, (1) 352216R1, 519381 O-ring, (2) 352221R1, 377952R1, 229317, 9672467 O-ring, (1) 354047R1 O-ring, (2) 354836R1, 70924840 O-ring, (1) 360599R1, 86511345 O-ring, (1) 354048R1 dust seal, (2) 375936R1 washer, (2) 371218R1 washer, (1) 383669R1 washer, (2) 404015R1 washers.
Also fits the following IH equipment using the IH cylinders listed above:
Tool bar: 82
Snow blower: 70, 80
Rotary cutter: 711
Moldboard plow: 710
Conser-till plow: 60, 6000
Vibra chisel: 645
Chisel plow: 45, 55, 4500, 5500
Cultivator: 78, 667, 669
Diskall: 300, 310
Harrow: 401
Planter: 56, 58, 66, 400, 500, 800
Manure spreader: 530, 540, 550, 555
Flail chopper: 6, 7. 8, 10, 40, 50, 60
Grain drill: 150, 620, 5100, 6200
Blade: 200, 300
Beet harvester: 23, 24, 25
Forage harvester: 350, 550
