IH Combines - Fits: 403
IH Industrial - Fits: 2656, 2706, 2756, 2806, 2826, 2856, Industrial: 3800, 3850
International / Farmall - Fits: 560, 656, 660, 706, 756, 766, 806, 826, 856, [ Cotton Picker: 616, 622 (Hydro) ]
Carb Mfg #'s - 378196R91, 378196R92, 378196R93, 379813R91, 379813R92, 379813R93, 381420R91, 381420R92, 381420R93, 381420R96, 388296R91, 388296R92, 388296R93, 388297R91, 388297R92, 388297R93, 388424R91, 388424R92, 388424R93, 388424R94, 388424R96, 388425R91, 388425R92, 388425R93, 388425R94, 388425R96, 396197R91, 396197R92, 396197R93, 396197R94, 396198R91, 396198R92, 396198R93, 396198R94, 533621R91, 533621R92, 533621R93, 533621R94, 533622R91, 533622R92, 533622R93, 533622R94, 539575R91, 539575R92, 539575R93, 539575R94

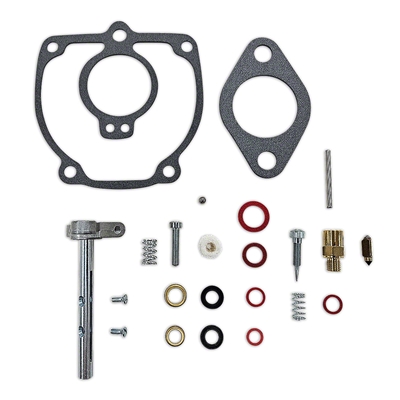

Kit includes:
throttle shaft (original style with cast iron arm)
needle and seat
float lever pin
choke and throttle shaft seal
needle valve
idle adjustment screw with graphite packing
friction ball
gaskets and instructions
Includes parts shown in picture above
For reassembly purposes only, instruction sheet and diagram may depict parts that are not included in this kit.
Make sure to find your carburetor manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
