- Replaces: PK150
IH Combines - Fits: [ 62, 64, 76 ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.) ]
IH Industrial - Fits: [ I12, I14 ('some'; using 3.30" lower sleeve seal O.D.; with IH overhead valve engine, with block casting # 3193D, 3193DC, 4818D, 4818DX ) ], [ T4, U2A ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.) ]
IH Miscellaneous - Fits: U2 ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.), Baler: 55W ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.), Windrower: 163 ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.)
International / Farmall - Fits: [ A, AV, B, BN, C, Super A, Super A-1, Super AV, Super AV-1, 100, 130, 140, 200, 230, 240 ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.) ], [ F12, F14, O12, O14, W12, W14 ('some'; using 3.30" lower sleeve seal O.D.; with IH overhead valve engine, with block casting # 3193D, 3193DC, 4818D, 4818DX ) ], [ Baler: 55T, 56T, 56W, 57T, 57W ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.) ], Windrower: 161 ('some'; with C-113 engine up to SN: 310300 or C-123 engine up to SN: 35830; with block casting #'s 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 and others using 3.30" lower sleeve seal O.D.);
Replaces: 366289R91, 378277R91, 43287DA, G-232HCH
Verify block casting number (Above oil filter canister) before ordering.
This kit only fits blocks with casting # 6342D, 6342DB, 6342DE, 6342DG, 6342DH, 251069R1, 366204R1, 366204R2, 367825R1 using 3.30" lower sleeve seal O.D.
This 4-cylinder kit has a 3.125" overbore, flat top aluminum 3 ring pistons and 3.30" lower sleeve seal O.D.
If you need 3.43" lower sleeve seal O.D, then please see IHS3064.

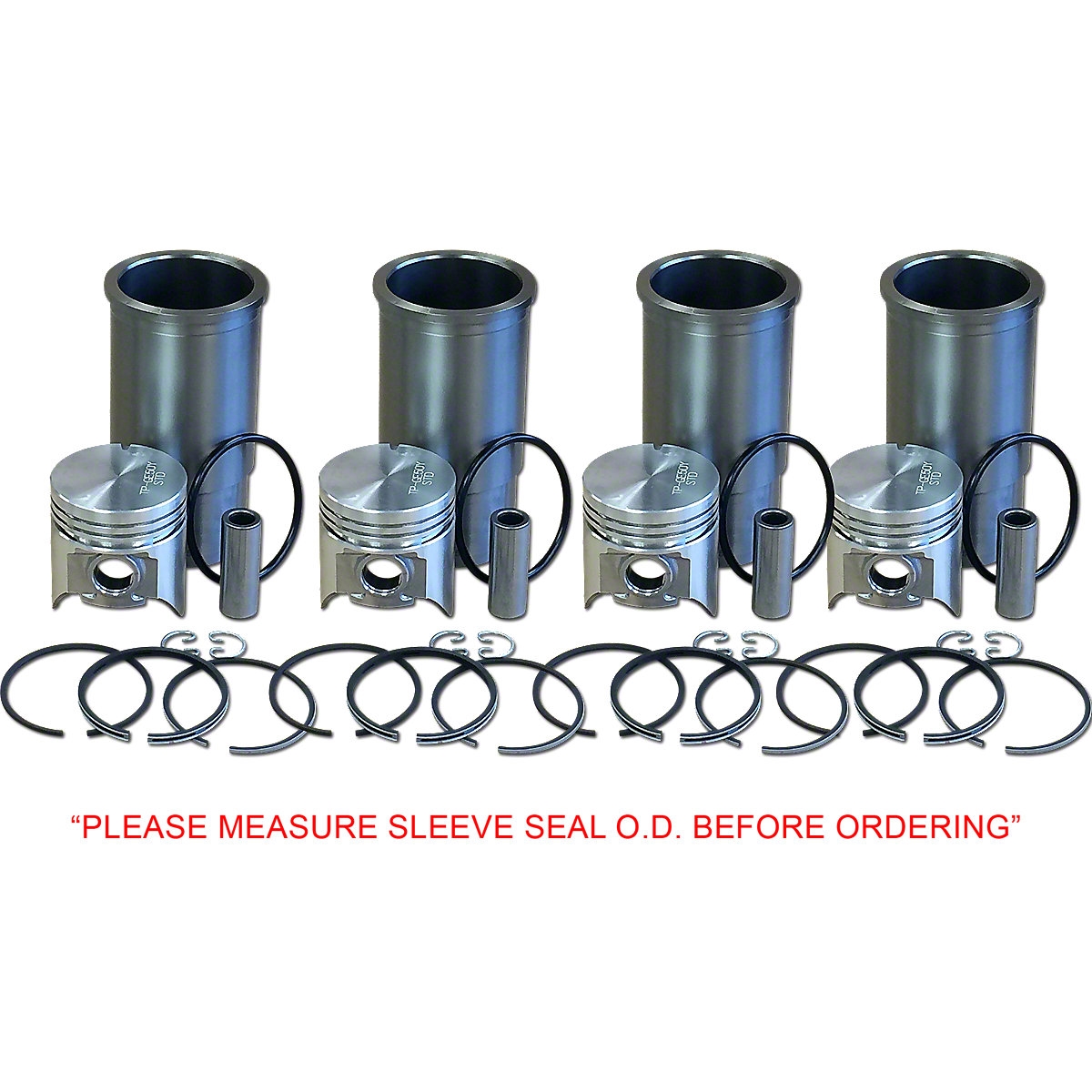

Includes sleeves, pistons, piston ring sets, piston pins, pin retainers and sleeve sealing rings.
