- Ford - Fits: [ TW10, TW5 (From 1/82-3/86 with BSD666 engine) ], [ TW15, TW20, TW25, 8630, 8730, 9000, 9200, 9600, 9700 (with BSD666T engine) ], [ TW30, TW35, 8830 (with BSD666TI engine) ], [ 2000 3 cylinder, 2110, 2120, 2300, 2310, 3055, 3100, 3110, 3120, 3190, 3300, 3310, 3330, 4190, 4200, 4330, 4340, 4410 (with 3 Cylinders, 1/65-12/74) ], 2100 (with 3 Cylinders, 3/65-12/74), [ 2600, 2600N, 2600R, 3600, 3600N, 3600V, 3900, 4100, 4600O (with 3 Cylinders, 1/75-12/81) ], 2600V (with 3 Cylinders, 10/75-9/76), [ 2610, 3610V (with 3 Cylinders, 1/81-4/83) ], 2610V (with 3 Cylinders, 1/70-2/90), [ 2810, 2910, 3910N (with 3 Cylinders, 1/83-2/90) ], 3000 (1965-75), 3110 (with 3 Cylinders, 3/82-12/83), [ 3230, 3430, 3610, 3910, 3910H, 3930H (with BSD332 engine) ], 3600R (with 3 Cylinders, 1/75-12/77), 3610NO (with 3 Cylinders, 8/81-4/83), 3910R (with 3 Cylinders, 1/81-12/84), 3910V (with 3 Cylinders, 12/83-2/90), [ 3930, 4110, 4130 3 Cylinder, 4130 3 Cylinder, 4600, 4610, 4610, 4630 (with BSD333 engine) ], 3930N (with 3 Cylinders, 3/90-6/95), [ 3930NO, 4130NO, 4630N, 4630NO (with 3 Cylinders, 3/90-8/99) ], 4000 3 cylinder (1965-75, with BSD333 engine), 4110N (with 3 Cylinders, 12/81-2/90), [ 4110NO, 4110O, 4110V, 4610N, 4610NO, 4610O (with 3 Cylinders, 1/81-2/90) ], 4600NO (with 3 Cylinders, 10/75-12/81), 4600SU (with 3 Cylinders, 1/75-7/81), 4630O (with 4 Cylinders, 3/90-8/99), [ 4830, 5030, 5110, 5610, 5900, 6610, 6710 (with BSD442 engine) ], 4830N (with 4 Cylinders, 3/90-5/94), 5000 (1965-75, with BSD442 engine), 5030O (with 4 Cylinders, 6/94-4/98), 5600 (with 233 CID Diesel engine), 5700 (1975-81), 6410 (with BSD444 engine), [ 6600, 6700 (From 1/75-9/80 with BSD442 engine) ], 6610O (with 4 Cylinders, 1/81-10/91), [ 6810, 7610, 7710 (with BSD444T engine) ], 7000 (with BSD442T engine), 7410 (with 4 Cylinders, 4/89-10/91), [ 7600, 7700 (From 1975-81 with BSD442T engine) ], 7610O (with 4 Cylinders, 10/81-12/91), [ 7810, 7910, 8210, 8530, 8700 (with BSD666 engine) ], 7810O (with 6 Cylinders, 2/88-10/91), 8000 (From 1/68-9/75 with BSD666 engine), 8200 (from 1/68 and up with BSD666 engine), 8400 (From 1/1968 and up with BSD666 engine), 8600 (From 10/72 and up with BSD666 engine), UK Edition: 2150 (with 3 Cylinders, 1/70-12/74), 3150 (with 3 Cylinders, 1/65-12/74); Replaces: 83912946, C9NN6055A, D0NN6055B, D7NN6055A
Ford Industrial - Fits: [ 230A, 334 (with 3 Cylinders, 1/81-4/83) ], [ 231, 233, 333, 531 (with 3 Cylinders, 1/75-12/81) ], 234 (with 3 Cylinders, 1/75-4/83), 335 (with 3 Cylinders, 1/83-2/84), 3500 (with 3 Cylinders, 1/65-12/74), [ 3550, 4500 (with 3 Cylinders, 1/65-12/74) ], [ 550, 555, 555A, 555B (with BSD333 engine) ], 555C (From 11/1988 and up with BSD444 engine), [ 655, 655A (with BSD444 engine) ], 655C (From 11/1988 and up with BSD444 engine)

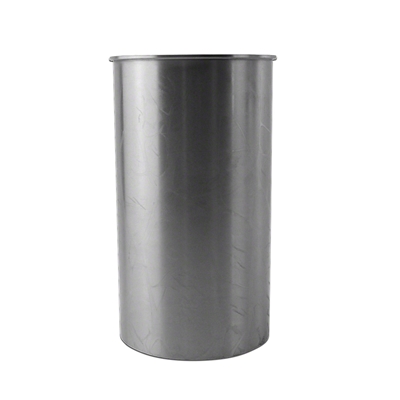

Note: The original block did not have liners, the block requires machining to accept liners and it is common practice for this product to be supplied semi-finished. As the liners are so thin having them semi-finished reduces the risk of distortion when pressing in and they can be machined to the exact size required afterward.
- Semi-Finished
- 4.401" Bore
- 4.503" Sleeve O.D.
- 8.210" Overall Length
|
|
|
 |
|
 |
|
