- Ford - Fits: the following 1954 to 2/1990: 2000 3 cylinder, 2000 4 cylinder, 2031, 2100, [ 2110 3 cylinder, 2110 4 cylinder, 2120 3 cylinder, 2120 4 cylinder (USA made only, NOT Japanese compact) ], 2111, 2121, 2131, 2150, 2300, 2310, 2600, 2610, [ 2810, 2910, 3910, 4110 3 cylinder, 4610, 4610SU (with single hydraulic pump) ], 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3300, 3310, 3330, 3600, 3610, 3900, 4000 3 cylinder, 4000 4 cylinder, 4000SU, 4031, 4100, 4110 4 cylinder, 4120, 4121, 4130 3 Cylinder, 4131, 4140 3 cylinder, 4140 3 cylinder, 4190, 4200, 4330, 4340, 4410, 4600, 4600SU, 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 940, 941, 950, 951, 960, 961, 971, 981; Replaces: Mounting kit: 309973F, 80309973, 309973, 309996, Valve with levers: C9NNB950B, E1NNB950BB, E1NNB950BA, 83928704, 83944762
Ford Industrial - Fits: the following 1954 to 2/1990: 1801, 1811, 1821, 1841, 1871, 1881, 2030, 2130, 230A, 231, 233, 234, 333, 334, 335, 340, 3400, 340A, 340B, 3500, 3550, 4030 4 cylinder, 4040, 4130 4 cylinder, 420, 4400, 445, 445A, 4500, 515, 530A, 531, 532, 535, 540, 540A, 540B, 545, 545A

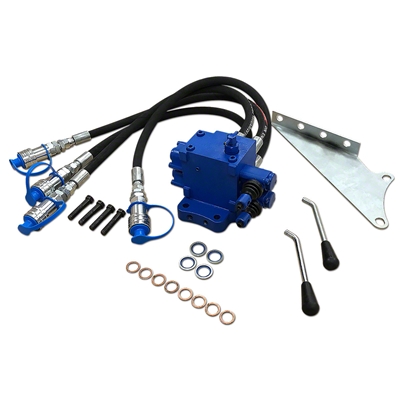

- Kit includes valve, levers, o-rings and hoses
- Depending on application, hoses may need an extra fitting to lengthen.
- Hose bracket and female couplers
- Non detent, spring centering
- Must form O-Ring to fit oval hole in bottom of the valve mounting plate when installing on the lift cover
- Mounts on the lift cover (under the seat)
- Some seat brackets may have to be modified for clearance
- Use with Pioneer 8010-4 series male plugs for the couplers (not included)
- Fits 1954-1990 applications listed
- Will not fit compact tractors
- Will NOT fit NAA, Jubilee, Golden Jubilee (bolt pattern is different)
- 3/8" BSP threaded hoses
|
|
|
 |
|
 |
|
