Case - Fits: 1190, 1194, 1210, 1212, 1290, 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1694, [ 1825, 1825B (Skid Steer) ], 885, 996, Selectamatic: 990, 995; Replaces: 3107556R92, 3107556R93, K203992, K912384, K920293, K920923, K929365, K945294, K961268
Case Industrial - Fits: 1529 (Skid Steer w/ Wisconson engine), 1835C (To SN: JAF003766, Skid Steer), 380CK, 580F, 580G
Case/IH - Fits: 238, 248, 258, 268, 385 (all European), USA: 485 (To Sn: 15000), 585, 685, 685
David Brown - Fits: 1294, [ 770A, 770B (SN: 588498 and up) ], 780, 880A (SN: 544392 and up), 880F, 880UF, 990A (SN: 456233 and up)
Delco - Replaces: 1533514
International / Farmall - Fits: [ Hydro 84, 484, 584, 684, 784 (all European) ], [ 454, 574, 674 (all European with CAV injection) ], 884 (European; up to SN: 3083), USA: 785; Replaces: 3107556R92, 3107556R93, 529800R91
MF Combines - Fits: 750, 760, [ 850, 855 (SN: 1696027544 and up) ], [ 860, 865 (SN: 1746019115 and up) ]
MF Industrial - Fits: [ 20D, 20F, 30E, 50F, 50H, 50HX, 60H (all Industrial) ], North American only: 40E, Power Shuttle: 50E
Massey Ferguson - Fits: 231, 240, 240P, 240S, 250, 253, 261, 263, 270, 275, 282, 283, [ 283, 290 (both UK) ], 290, 298, 3050, 3060, 3065, 3070, 3075, 3090, 3120, 3125, 3140, 3505, 3525, 3545, 360, 362, 3630, 3645, 3650, 3655, 3670, 3680, 3690, 375, 383, 390, 390T (SN: B18008 to 819776 with cab), 393 (up to SN: B18008 with cab and up to SN: A29150 without cab ), 399, 6140, 6150, 6170, 6180, 6190, [ 6270, 6280, 6290, 8210, 8220 (all up to January 2000) ], 8120, 8140, 8150, Industrial: 30H (with cab), Spain: 230S, Turkey: 231S, 241, 265S, 271, 281, 285S; Replaces: 1097239M91, 1446116M91, 3 position switch: 1690093M91, 1874120M91, 1874120M93, 1874120T93, 1874535M1, 1874535M3
This switch will also work for the following brands / models:
JCB: 3CMKIII, 3DMKIII, 140, 406, 412, 415, 420, 430, 520 Replaces: 70102600, 70703200, 70707500, 71005100
Landini: (Advantage 55, 55F, 55V, 60, 60F, 60V, 65, 65F, 65V, 75, 75F, 75V, 85, 85F, 85V, 95), (Blizzard 60, 65, 75, 85, 95), C10500, (Globus 50, 55, 60, 65, 70, 75, 80), (Mistral 40, 45, 50, 55), (Rex 100, 100F, 60F, 70, 70F, 80, 80F, 90, 90F), (Trekker 60F, 65F, 70F, 75, 75F, 85, 85F, 95), (Vigneti 55V, 60V, 65V, 75V), 10000S, 12500, 14500, 16000, 16500, 4560F, 4560L, 4560V, 5560F, 5560L, 5560V, 5860, 5870, 6060, 6060F, 6060L, 6060V, 6070, 6560F, 6560L, 6560V, 6860, 6870, 6880, 7560F, 7560L, 7560V, 7860, 7870, 7880, 8560F, 8560L, 8560V, 8860, 8870, 8880, 9060, 9080, 9880 Replaces: 12846121, 2846130, 1874120M93
Leyland: 245, 253, 255, 262, 270, 272, 282, 285, 3/45, 344, 384, 4/65, 4100, 462, 472, 482, 485, 502, 602, 604, 702, 704, 802, 804, 2100 Replaces: BAU2007, 37H8530
Marshall: 100, 302, 502, 602, 604, 702, 704, 802, 804, 904 Replaces: BAU2007, 37H8530
Nuffield: 3/45, 4/25, 4/65 Replaces: BAU2007
Valmet & Valtra: 500, 502, 504, 602, 604, 700, 702, 703, 802, 803, 900, 903, 1100, 1102, 1103, 1203, 6000, 6100, 6300, 6400, 6600, 6800, 8000, 8100, 8200, 8400 Replaces: 32553200, 816450.
Additional replacement numbers:
Lucas: 54324154, 54033688, 35670, 30413
Perkins: 2846121

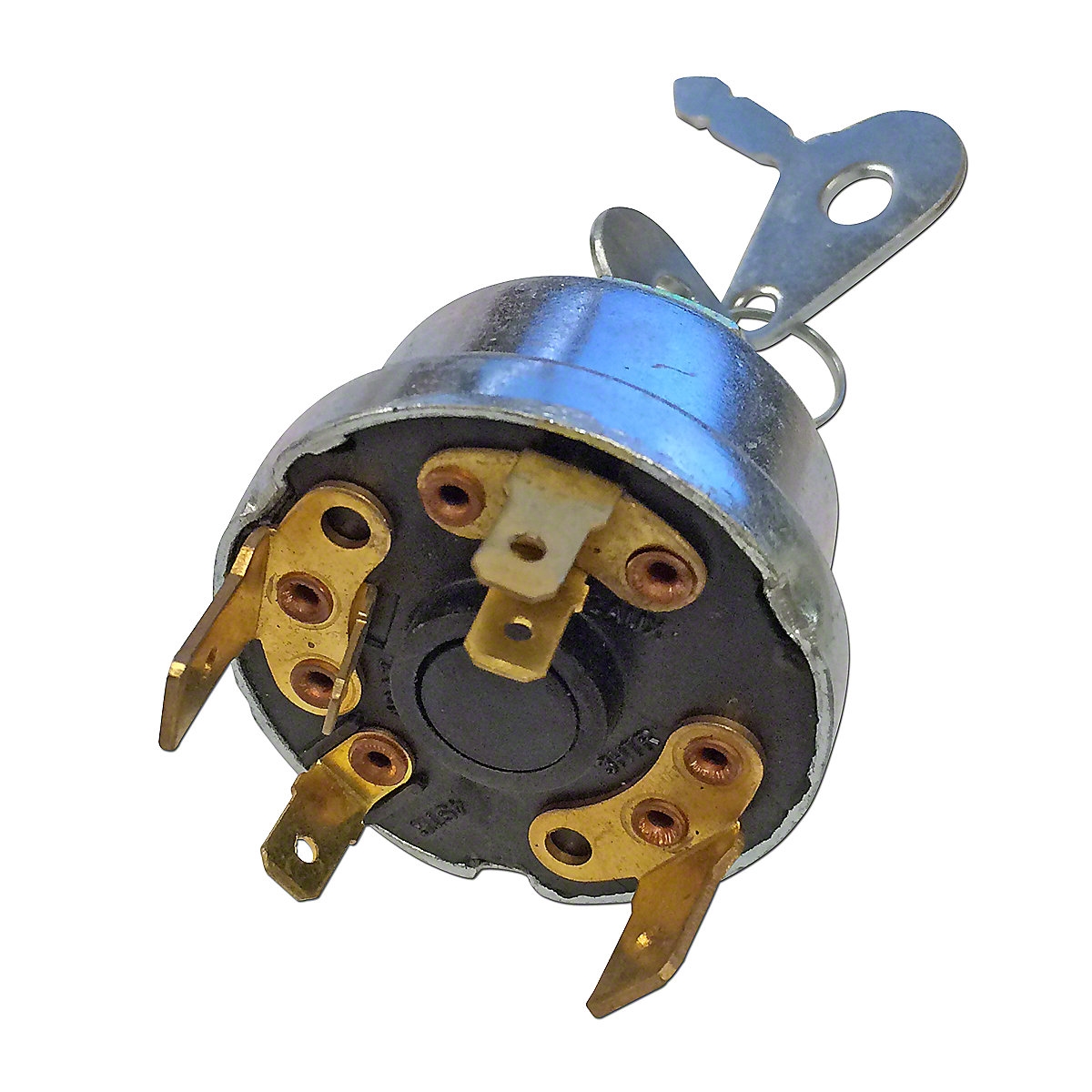

There are total of 6 spade terminals on this 4-position (off on heat start) switch
(2) of the spades measure 0.375" wide
(4) of the spades measure 0.250" wide

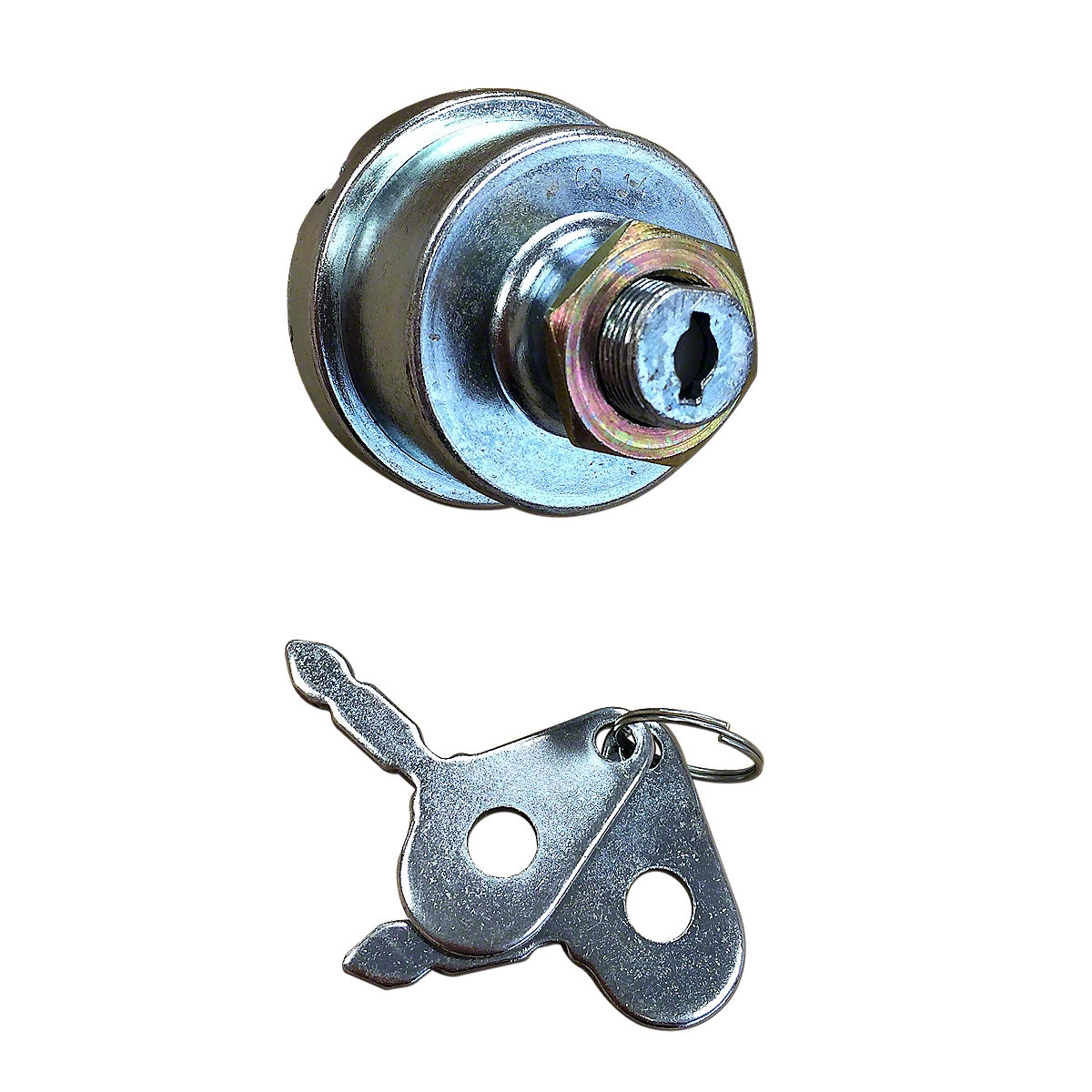

The threaded end measures 0.625".
