Piston Ring Set 4-Cylinder 4-1/4" bore
Piston Ring Set 4-Cylinder 4-1/4" bore

Piston Ring Set 4-Cylinder 4-1/4" bore
Our Price: $89.99
Special Instructions: 261


Product Code: ABC2150
Qty:

Description

  • Case - Fits: [ SOME : 700, 700B, 701B, 702B, 703B, 730, 731, 732, 733, 734, 800B, 801B, 802B, 803B, Super 400 (Diesel w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.) ], [ 830, 840, 841 (Gas w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.) ]
    Case Industrial - Fits: SOME : 800 Skidder (Diesel w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.), SOME Industrial: 680 (Diesel w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.), [ W7, W7C (Gas w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.) ]
    Fits John Deere - SOME : 3020 (up to SN 123000 with 227 C.I. gas w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.), [ SOME Industrial: 500A, 500B (up to SN 123000 with 227 C.I. gas w/ 4-1/4" bore. Three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.) ]

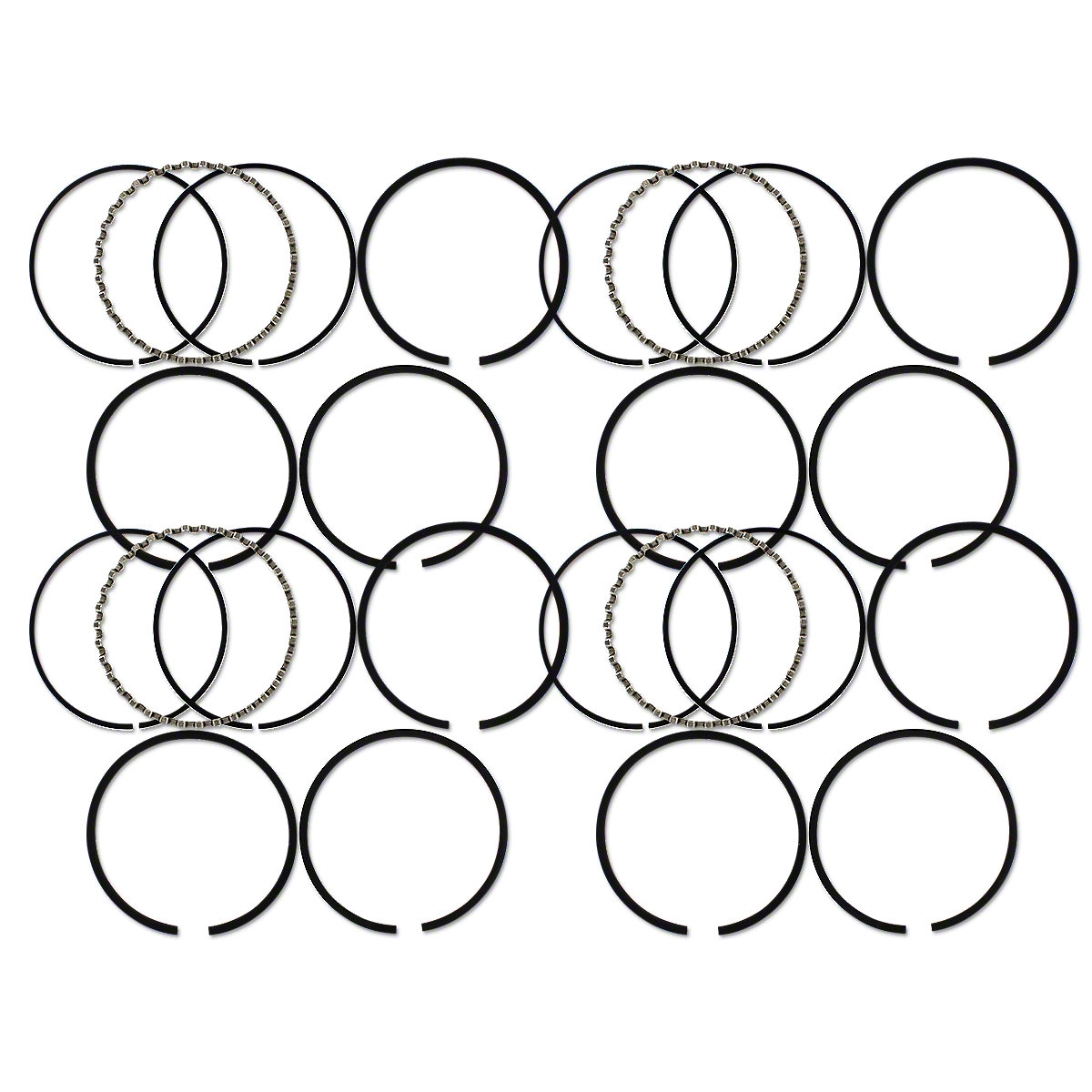

    • 4-1/4" bore, (3) 0.093" compression rings, (1) 0.250" oil ring
    Measure old rings before ordering. Do not order by tractor model only. Due to the many different piston manufacturers, there can be as many as 8 different ring sets available for one particular engine. To ensure you order the correct rings, we need the following information: 1.) bore size, 2.) thickness of each ring, 3.) how many of each ring thickness per piston. Warranty is void if opened.

    • This ring set is intended for use on models listed with 4-1/4" bore.
    • Set includes three 3/32" (0.093") compression rings and one 1/4" (0.250") oil ring PER PISTON.
    • Please verify bore size and ring thickness before ordering
