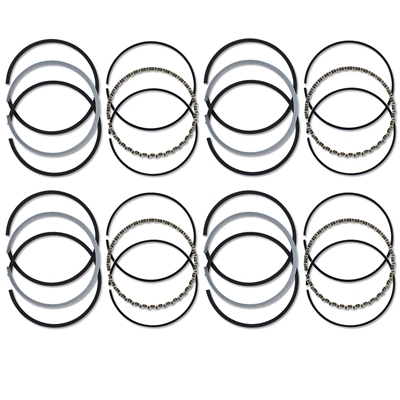

Piston Ring Set 4-Cylinder 3" bore
Piston Ring Set 4-Cylinder 3" bore

Piston Ring Set 4-Cylinder 3" bore
Our Price: $109.99
Special Instructions: 261


Product Code: ABC2110
Qty:

Description

  • Case - Fits: [ V, VC, VO (Some with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ]; Replaces: C600A305, F124A305
    Case Industrial - Fits: [ Terra Trac, VI (Some with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ]
    Cockshutt - Fits: E2 (Some with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.), 20 (Some up to SN: 962 with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.); Replaces: TO12103
    IH Industrial - Fits: [ Some had 5 groove pistons, the 5th groove NEVER had a ring from the factory.: I12, I14 (Some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ]
    International / Farmall - Fits: [ A, AV, B, BN, C (Some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ], [ Super A, Super A-1, Super AV, Super AV-1 (early; some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ], Some had 5 groove pistons, the 5th groove NEVER had a ring from the factory.: F12 (SN: FS80064 and up; some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.), F14 (SN: FS80064 and up; some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring. ), [ O12, W12, W14 (Some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ], O14 (Some with 113 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring. ); Replaces: 357677R93, 69791D
    Massey Harris - Fits: [ Colt (21), 81 (with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.) ], 101 Jr (1939 - 40 with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.), 20 (Some with F124 CI engines and 3" bore, (3) 0.125" compression rings, (1) 0.187" oil ring.); Replaces: 836090M91, 840420M91

    Measure old rings before ordering. Do not order by tractor model only. Due to the many different piston manufacturers, there can be as many as 8 different ring sets available for one particular engine.

    To ensure you order the correct rings, we will need the following information:
    • 1.) bore size
    • 2.) thickness of each ring
    • 3.) how many of each ring thickness per piston
    Rings can not be returned if opened

    • 3" bore
    • (3) 0.125" compression rings
    • (1) 0.187" oil ring
