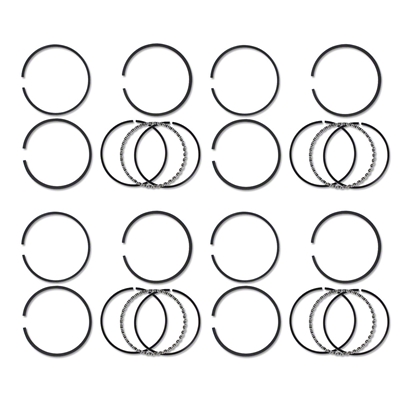

Piston Ring Set 4-Cylinder 3-7/16" bore
Piston Ring Set 4-Cylinder 3-7/16" bore

Piston Ring Set 4-Cylinder 3-7/16" bore
Our Price: $125.95
Special Instructions: 261


Product Code: ABC2086
Qty:

Description

  • AC Industrial - Fits: [ Industrial: F30, F40 (Gas/LP with G153 engine and 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring) ]
    Allis Chalmers - Fits: [ B, C, CA, IB, RC (With 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring) ], [ D10, D12 (To Sn# 3500, With 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring) ], [ Industrial: AT40, FD30, FD40, FD50 (Gas/LP with G153 engine and 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring) ]
    Cockshutt - Fits: 30 (with Buda G153 Engine with standard 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring), 540 (with Continental F162 engine with standard 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring), Co-Op : E3 (with Buda G153 Engine with standard 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring); Replaces: 3113413, 74512439, T19519, T20007
    Massey Harris - Fits: [ 101 Jr, 102 Jr, 30 (with Continental F162 engine with standard 3-7/16" bore, (3) 0.125" compression rings, (1) 0.1875" oil ring) ]; Replaces: 33858A, A600A208, F162A302

    • Some Massey Harris clipper combine using 4-cylinder Flathead Continental
    • Silver King models 42 through 720
    • Brockway 49G
    • C26 Intercontinental
    • Long model A and AW tractors built in Tarboro, NC
    • Many Lincoln welders
    • F124, F140, F162 and F163 CID flathead Continental engines


    • 3-7/16" bore
    • (3) 0.125" compression rings
    • (1) 0.187" oil ring
    Measure old rings before ordering. Do not order by tractor model only. Due to the many different piston manufacturers, there can be as many as 8 different ring sets available for one particular engine.

    To ensure you order the correct rings, we need the following information:
    • 1.) bore size
    • 2.) thickness of each ring
    • 3.) how many of each ring thickness per piston
    Rings can not be returned if opened (warranty void after opening.)
