- AC Industrial - Fits: [ SOME w/G160 engine 3-5/8" bore, (3) 0.093" compression rings, (1) 0.187 oil ring: I60, I600 (gas) ]
Allis Chalmers - Fits: SOME w/G160 engine 3-5/8" bore, (3) 0.093" compression rings, (1) 0.187 oil ring: D15 ((SN: 9001 and up), gas), H3 ((SN: 6960 and up), gas); Replaces: 70248293
Case - Fits: SOME 3-5/8" bore, (3) 0.093" compression rings, (1) 0.187 oil ring: S, SC, SC-3, SC-4, SI, SO
Fits John Deere - SOME 3-5/8" bore, (3) 0.093" compression rings, (1) 0.187 oil ring; if engine is equipped with 3 ring piston, discard 1 ring: 1010 (dsl), 2010 (gas); Replaces: AT11876, AT14702
Minneapolis Moline - Fits: [ SOME w/ 206 engine 3-5/8" bore, (3) 0.093" compression rings, (1) 0.187 oil ring: 335, 445, 4 Star, 4 Star Super, Big Mo 400, Big Mo 500, Big Mo 600, JetStar, JetStar 2, JetStar 3, Jetstar 3 Super (gas/LP/dsl) ]; Replaces: 10R793, 10R962, 10R968
Oliver - Fits: SOME 3-5/8" bore, (3) 0.093" compression rings, (1) 0.187 oil ring: 550 ((SN: 72832 and up)), 660 ((SN: 73132 and up)); Replaces: 103435AS, 106569AS
White - Fits: 2-44
Measure old rings before ordering. Do not order by tractor model only. Due to the many different piston manufacturers, there can be as many as 8 different ring sets available for one particular engine. To ensure you order the correct rings, we will need the following information:- 1.) Bore Size.
- 2.) Thickness of each Ring.
- 3.) How many of each Ring Thickness per Piston. Rings CANNOT be returned if opened.

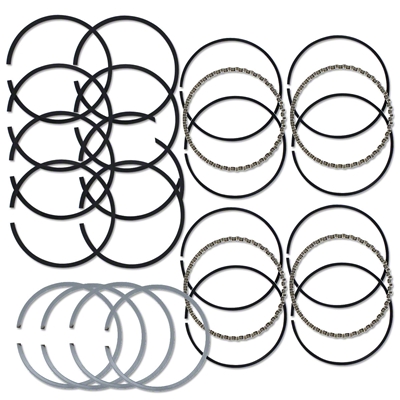

- 3-5/8" bore
- (3) 0.093" compression rings
- (1) 0.187 oil ring
|
|
|
 |
|
 |
|
