- AGCO - Replaces: 70228365V
Allis Chalmers - Fits: D10 (up to SN: 3501), D12 (up to SN: 3001), D14 (up to SN: 19000); Replaces: 228365, 70228365
Case - Fits: [ 200, 200B, 210, 210B, 211, 211B (with 6 volt DELCO generator 1100531) ]; Replaces: G44861
Delco - Replaces: 1116807, 1116816, 1118291, 1118308, 1118780, 1118982, 1119575, D645, D657
IH Industrial - Fits: I4, I6
International / Farmall - Fits: C, Cub, Cub Loboy, H, I9, M, MD, O4, Super A, Super C, Super H, Super M, Super MTA, Super W4, Super W6, Super W6TA, W4, W6, W9 (SN: 48741 & up), WR9, WR9S, 100, 130, [ 140, 240 (with generator) ], 200, 230, 300, 330, 340, 350, 400, 450; Replaces: 121578C1, 354234R91, 360898R91, 365775R91, 376121R91
JD Industrial - Fits: MI (If switching from a cut-out relay, you must also use ABC188 conversion kit), 440
Fits John Deere - [ M, MC, MT (If switching from a cut-out relay, you must also use ABC188 conversion kit) ], 320, 330, 40, 420, 430; Replaces: AM1863T, AM2702T
Massey Ferguson - Fits: TO20, TO30, TO35 (up to SN: 161250); Replaces: Serviceable - Rear gen terminal may interfere with start solenoid. : 180142M92
- Replaces Delco cut out number 116807 and 1116816 when used with our ABC188 conversion kit
- Fits following Delco generators: 1100025, 1100055, 1100509, 1101404, 1100501, 1100523, 1100529, 1100530, 1101857, 1101859, 1102102.

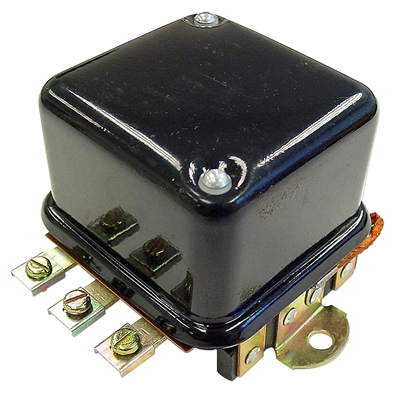

- This external voltage regulator has a flat base for mounting
- There are 4 terminals (lights, battery, field and generator)
- Designed for A type circuits in positive ground systems with 2 brush generators
- Measures 7 to 9 output amps
|
|
|
 |
|
 |
|
